Advection C
In input deck C an Eulerian formulation with 2nd order advection is used. Distortion of the plastic strain field is now much less in comparison with 1st order advection. Download is available in the download section of this document.
Keywords
Keywords
The used Keywords in alphabetical order.
*BOUNDARY_PRESCRIBED_MOTION_SET *CONTROL_ALE *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DEFINE_CURVE *ELEMENT_SOLID *END *INITIAL_STRESS_SOLID *KEYWORD *MAT_PLASTIC_KINEMATIC *NODE *PART *SECTION_SOLID *SET_NODE_LIST_GENERATE
Reduced Input
Reduced Input
*Node and *Element Cards are removed.
*KEYWORD *CONTROL_TERMINATION 0.05 *CONTROL_TIMESTEP 0.0, 0.8 *BOUNDARY_PRESCRIBED_MOTION_SET 1, 1, 0, 1, 1.0 *SET_NODE_LIST_GENERATE 1 1, 1204 *DEFINE_CURVE 1 0.0, 100.0 1.0, 100.0 *DATABASE_BINARY_D3PLOT 0.0001 *MAT_PLASTIC_KINEMATIC 1, 10000.0, 1.0E+10, 0.0, 1.0E+07 *CONTROL_ALE 0, 1, 2, -1 *SECTION_SOLID 1, 6 *PART 1, 1, 1 *INITIAL_STRESS_SOLID $ *NODE $ *ELEMENT_SOLID $ *END

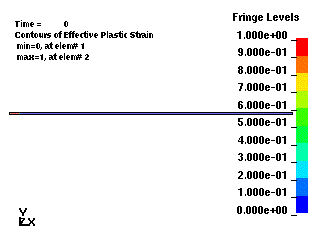

Figures
Figures

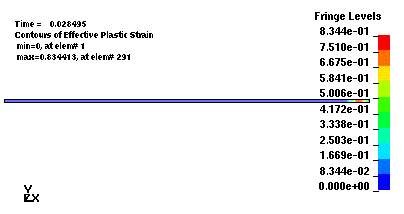

Animated Result
Animated Result
