Underwater C
This is a plane strain model of a high explosive detonation in water. File underwater_C.k is Eulerian with 1st order advection and a coarse mesh. Download is available in the download section of this document.
Keywords
Keywords
The used Keywords in alphabetical order.
*ALE_MULTI-MATERIAL_GROUP *CONTROL_ALE *CONTROL_ENERGY *CONTROL_TERMINATION *DATABASE_BINARY_D3PLOT *DATABASE_GLSTAT *END *EOS_GRUNEISEN *EOS_JWL *INCLUDE *INITIAL_DETONATION *KEYWORD *MAT_HIGH_EXPLOSIVE_BURN *MAT_NULL *PART *SECTION_SOLID
Reduced Input
Reduced Input
*Node and *Element Cards are removed.
*KEYWORD
*INCLUDE
coarse.inc
*ALE_MULTI-MATERIAL_GROUP
1 1
2 1
*CONTROL_ALE
0 1 1 -1.0
*CONTROL_TERMINATION
100.0
*DATABASE_BINARY_D3PLOT
1.0
*DATABASE_GLSTAT
0.1
*INITIAL_DETONATION
1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*CONTROL_ENERGY
2 1 2 2
*MAT_NULL
1 1.0
*EOS_GRUNEISEN
1 1.5
*INITIAL_DETONATION
2
*MAT_HIGH_EXPLOSIVE_BURN
2 1.63 0.784 0.260 0.000E+00
*EOS_JWL
2 3.71 3.230E-02 4.15 0.950 0.300 4.300E-02 1.00
*SECTION_SOLID
1 11
*SECTION_SOLID
2 11
*PART
1 1 1 1
*PART
2 2 2 2
*END

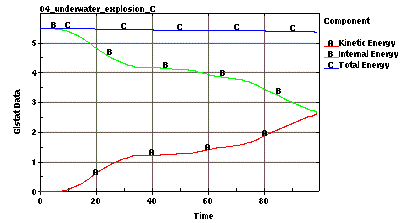

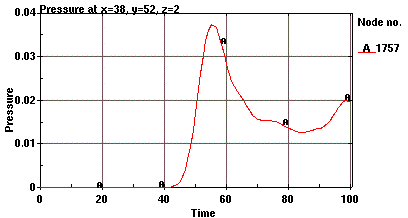

Figures
Figures

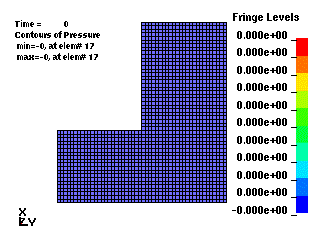

Animated Result
Animated Result
