Underwater D
This is a plane strain model of a high explosive detonation in water. File underwater_D.k is Eulerian with 1st order advection and a fine mesh. Download is available in the download section of this document.
Keywords
Keywords
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: underwater_D.k
The used Keywords in alphabetical order.
*ALE_MULTI-MATERIAL_GROUP *CONTROL_ALE *CONTROL_ENERGY *CONTROL_TERMINATION *DATABASE_BINARY_D3PLOT *DATABASE_GLSTAT *END *EOS_GRUNEISEN *EOS_JWL *INCLUDE *INITIAL_DETONATION *KEYWORD *MAT_HIGH_EXPLOSIVE_BURN *MAT_NULL *PART *SECTION_SOLID
Reduced Input
Reduced Input
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: underwater_D.k
*Node and *Element Cards are removed.
*KEYWORD
*INCLUDE
fine.inc
*ALE_MULTI-MATERIAL_GROUP
1 1
2 1
*CONTROL_ALE
0 1 1 -1.0
*CONTROL_TERMINATION
100.0
*DATABASE_BINARY_D3PLOT
1.0
*DATABASE_GLSTAT
0.1
*INITIAL_DETONATION
1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*CONTROL_ENERGY
2 1 2 2
*MAT_NULL
1 1.0
*EOS_GRUNEISEN
1 1.5
*INITIAL_DETONATION
2
*MAT_HIGH_EXPLOSIVE_BURN
2 1.63 0.784 0.260 0.000E+00
*EOS_JWL
2 3.71 3.230E-02 4.15 0.950 0.300 4.300E-02 1.00
*SECTION_SOLID
1 11
*SECTION_SOLID
2 11
*PART
1 1 1 1
*PART
2 2 2 2
*END

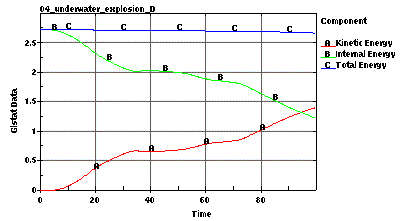

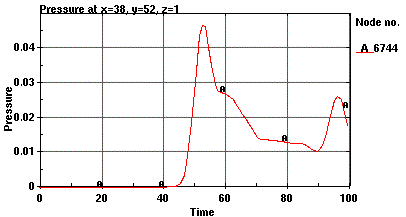

Figures
Figures
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: underwater_D.k

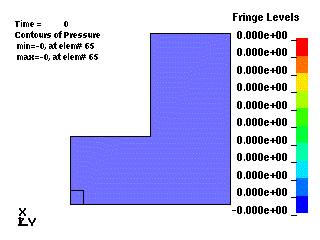

Animated Result
Animated Result
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: underwater_D.k
