FSI

A bar impacts a water surface. The coupling of this model is simulated in different quadrature points.

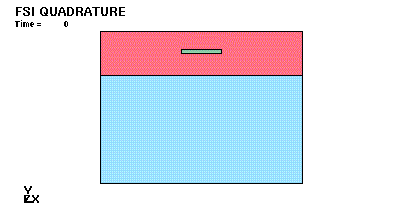

Quadrature A

Quadrature A

This models a bar impacting a water surface. File quadrature_A.k is Lagrangian and just a preparation for decks B and C.  …more

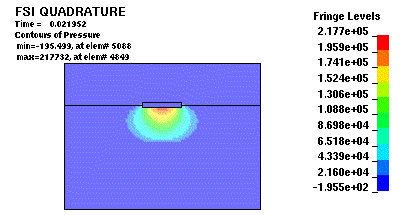

Quadrature B

Quadrature B

This models a bar impacting a water surface. File quadrature_B.k is Eulerian with 1st order advection and a single material for the water. *INITIAL_VOID_PART command is used to model the space above the water surface. One quadrature point is used for the coupling.  …more

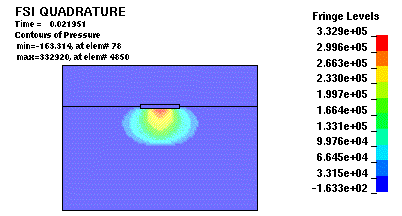

Quadrature C

Quadrature C

This models a bar impacting a water surface. File quadrature_C.k is Eulerian with 1st order advection and a single material for the water. *INITIAL_VOID_PART command is used to model the space above the water surface. Three quadrature points are used for the coupling.  …more
