Quadrature A
This models a bar impacting a water surface. File quadrature_A.k is Lagrangian and just a preparation for decks B and C. Download is available in the download section of this document.
Keywords
Keywords
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: quadrature_A.k
The used Keywords in alphabetical order.
*CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *ELEMENT_SOLID *END *EOS_GRUNEISEN *INITIAL_VELOCITY_GENERATION *KEYWORD *MAT_NULL *MAT_RIGID *NODE *PART *SECTION_SOLID *SET_PART_LIST *TITLE
Reduced Input
Reduced Input
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: quadrature_A.k
*Node and *Element Cards are removed.
*KEYWORD *TITLE FSI quadrature *CONTROL_TERMINATION 0.07 *CONTROL_TIMESTEP 0.0,0.7 *DATABASE_BINARY_D3PLOT 0.002 *MAT_NULL 1,1000.,-1.0+11,0.0 *EOS_GRUNEISEN 1,100. *MAT_RIGID 2,30000.,2.0+11,0.0 *SECTION_SOLID 1,1 *SECTION_SOLID 2,1 *PART 1,1,1,1 *PART 2,1,1,1 *PART 3,2,2 *INITIAL_VELOCITY_GENERATION 3,2,0.,0.,-5.,0. *SET_PART_LIST 1 1,2 *NODE $ *ELEMENT_SOLID $ *END

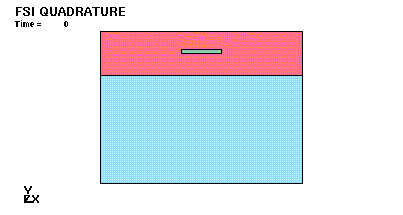

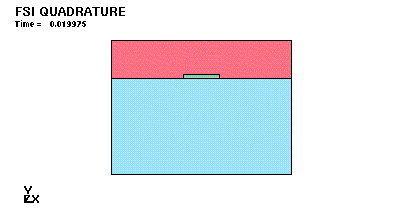

Figures
Figures
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: quadrature_A.k

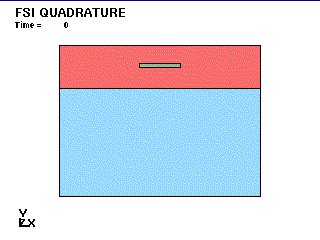

Animated Result
Animated Result
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: quadrature_A.k
Download
Download
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: quadrature_A.k
