Models utilizing the ALE method

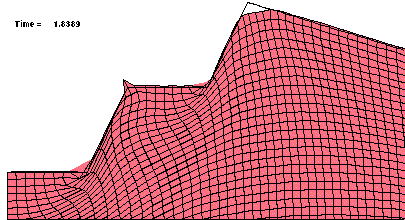

Forging AThis is a Lagrangian model of a forging operation in plane strain. Calculation aborts with error due to negative volume of some elements. |

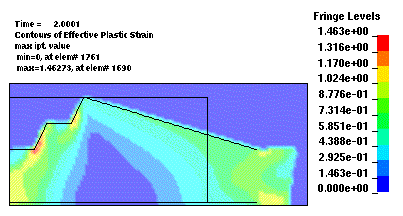

Forging BThis is an Eulerian model of a forging operation in plane strain. In contrast to Lagrangian calculation elements stay well shaped. |

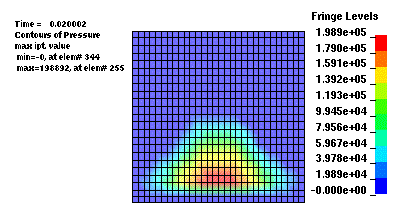

Impact AThis models a water jet impacting a rigid plate. For the fluid-structure interaction an appropriate penalty stiffness is defined. The contact pressure is highly oscillating especially at the beginning and reaching an approximately stationary level later. |

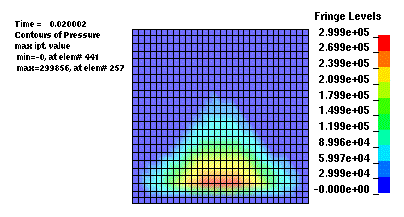

Impact BThis models a water jet impacting a rigid plate. For the fluid-structure interaction an appropriate penalty stiffness is defined. Damping is added to the fluid-structure interaction. |

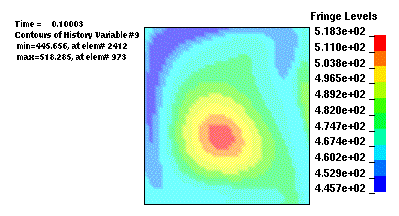

Point sourceThis is a model of a tank that is filled with an ideal gas. The keyword *SECTION_POINT_SOURCE_MIXTURE is used to shoot in more gas into the tank. The distribution of the generated gas and the temperature are stored in history variables #1 and #9, respectively. |

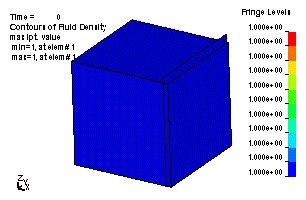

Volume Fraction AFile cylinder_impact_A.k contains an Eulerian mesh and a rigid plate. |
Volume Fraction BThis is an Eulerian mesh and a rigid plate. The keyword *INITIAL_VOLUME_FRACTION_GEOMETRY is used to define a metal cylinder inside the mesh. The cylinder is assigned an initial velocity and impacts the rigid plate. |
