Impact B
This models a water jet impacting a rigid plate. For the fluid-structure interaction an appropriate penalty stiffness is defined. Damping is added to the fluid-structure interaction. Download is available in the download section of this document.
Keywords
Keywords
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: stagnation_B.k
The used Keywords in alphabetical order.
*ALE_MULTI-MATERIAL_GROUP *BOUNDARY_PRESCRIBED_MOTION_SET *CONSTRAINED_LAGRANGE_IN_SOLID *CONTROL_ALE *CONTROL_HOURGLASS *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DATABASE_FSI *DEFINE_CURVE *ELEMENT_SHELL *ELEMENT_SOLID *END *EOS_GRUNEISEN *INITIAL_VELOCITY_GENERATION *KEYWORD *MAT_ELASTIC *MAT_NULL *MAT_VACUUM *NODE *PART *SECTION_SHELL *SECTION_SOLID *SET_NODE_LIST *SET_PART_LIST *SET_SEGMENT
Reduced Input
Reduced Input
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: stagnation_B.k
*Node and *Element Cards are removed.
*KEYWORD *CONTROL_HOURGLASS 1, 1.0e-3 *DATABASE_FSI 0.00001 1,1,2 *SET_SEGMENT 1 1498, 1519, 1520, 1499 *DATABASE_BINARY_D3PLOT 0.0001 *CONTROL_TERMINATION 0.02 *CONTROL_TIMESTEP 0, 0.8 *CONTROL_ALE 0, 1, 1, -1.0 *INITIAL_VELOCITY_GENERATION 1, 2, 0, 0, -20.0, 0 *BOUNDARY_PRESCRIBED_MOTION_SET 1, 2, 0, 1 *SET_NODE_LIST 1 517, 528, 989, 990, 991, 992, 993, 994 995, 996, 997, 998, 999, 1000, 1001, 1002 1003, 1004, 1005, 1006, 1007, 1008 *DEFINE_CURVE 1 0.0, -20.0 1.0, -20.0 *MAT_NULL 1, 1000.0 *EOS_GRUNEISEN 1, 1500.0 *MAT_VACUUM 2, 0.01 *MAT_ELASTIC 3, 8000.0, 1.0e11 *SECTION_SOLID 1, 11 *SECTION_SOLID 2, 11 *SECTION_SHELL 3, 0 0.01, 0.01, 0.01, 0.01 *PART 1, 1, 1, 1 *PART 2, 2, 2 *PART 3, 3, 3 *ALE_MULTI-MATERIAL_GROUP 1, 1 2, 1 *CONSTRAINED_LAGRANGE_IN_SOLID 3, 1, 1, 0, 4, 4, 1, 1 0, 0, -2, 0, 0, 0, 0, 1.0 $0, 0, 0.1, 0, 0, 0, 0, 1.0 *SET_PART_LIST 1 1, 2 *DEFINE_CURVE 2 0.0, 0.0 1.0e-3, 1.0e6 *NODE $ *ELEMENT_SOLID $ *ELEMENT_SHELL $ *END

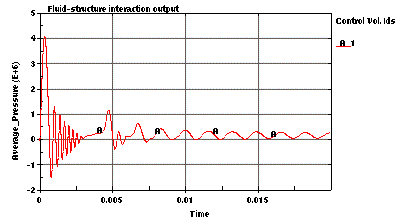

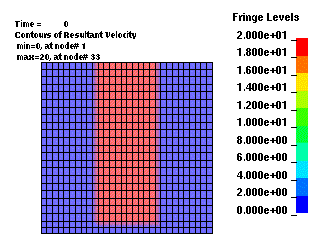

Figures
Figures
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class
of M'hamed Souli and Lars Olvosson. Example name: stagnation_B.k

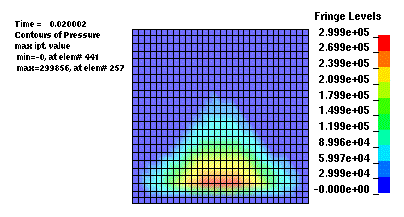

Animated Result
