Volume Fraction B
This is an Eulerian mesh and a rigid plate. The keyword *INITIAL_VOLUME_FRACTION_GEOMETRY is used to define a metal cylinder inside the mesh. The cylinder is assigned an initial velocity and impacts the rigid plate. Download is available in the download section of this document.
Keywords
Keywords
The used Keywords in alphabetical order.
*ALE_MULTI-MATERIAL_GROUP *CONSTRAINED_LAGRANGE_IN_SOLID *CONTROL_ALE *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DEFINE_CURVE *ELEMENT_SHELL *ELEMENT_SOLID *END *INITIAL_VELOCITY_GENERATION *INITIAL_VOLUME_FRACTION_GEOMETRY *KEYWORD *MAT_PLASTIC_KINEMATIC *MAT_VACUUM *NODE *PART *SECTION_SHELL *SECTION_SOLID
Reduced Input
Reduced Input
*Node and *Element Cards are removed.
*KEYWORD *CONTROL_TERMINATION 1.0e-3 *CONTROL_TIMESTEP 0.0, 0.8 *DATABASE_BINARY_D3PLOT 1.0e-4 *CONTROL_ALE 0, 1, 2, -1.0 *ALE_MULTI-MATERIAL_GROUP 1, 1 2, 1 *MAT_VACUUM 1, 1.0 *MAT_PLASTIC_KINEMATIC 2, 8000.0, 200.0e9, 0.3, 200.0e6 *MAT_PLASTIC_KINEMATIC 3, 8000.0, 200.0e9, 0.3, 200.0e6 *SECTION_SOLID 1, 11 *SECTION_SOLID 2, 11 *SECTION_SHELL 3, 0 0.1, 0.1, 0.1, 0.1 *PART 1, 1, 1 *PART 2, 2, 2 *PART 3, 3, 3 *INITIAL_VOLUME_FRACTION_GEOMETRY 1, 1, 1 4, 0, 2 0.03, 0.0, 0.0, 0.18, 0.0, 0.0, 0.1, 0.1 *INITIAL_VELOCITY_GENERATION 1, 2, 0.0, 200.0, 0.0, 0.0 *CONSTRAINED_LAGRANGE_IN_SOLID 3, 1, 1, 1, 4, 4, 2, 1 0, 0, -1 *DEFINE_CURVE 1 0.0, 0.0 1.0e-3, 1.0e9 *NODE $ *ELEMENT_SOLID $ *ELEMENT_SHELL $ *END
Figures
Figures
Animated Result

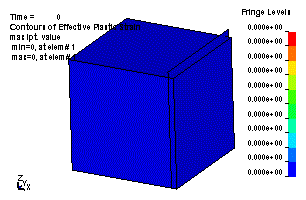

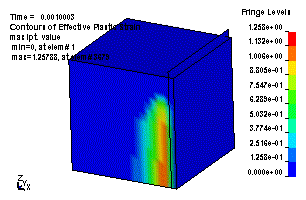

Animated Result
