Pipe B
The input deck models a viscous fluid that is flowing through a pipe. The download link to the complete input file is given in the navigation on the left.
Keywords
Keywords
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: channel_B.k
The used Keywords in alphabetical order.
*BOUNDARY_PRESCRIBED_MOTION_NODE *CONTROL_ALE *CONTROL_HOURGLASS *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DEFINE_CURVE *ELEMENT_SOLID *END *EOS_GRUNEISEN *KEYWORD *MAT_NULL *NODE *PART *SECTION_SOLID_ALE *TITLE
Reduced Input
Reduced Input
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: channel_B.k
*Node and *Element Cards are removed.
*KEYWORD
*TITLE
Channel
*CONTROL_TERMINATION
0.0200000
*CONTROL_TIMESTEP
0.0000000 0.7000000
*DATABASE_BINARY_D3PLOT
0.0002000
*CONTROL_HOURGLASS
1 0.0001
*CONTROL_ALE
0 1 1-1.0000000 0.0000000 0.0000000 0.0000000
*MAT_NULL
1 1000.0000 -1.00E+10 1.0000000
*EOS_GRUNEISEN
1 1500.0000
*SECTION_SOLID_ALE
1 6
*PART
1 1 1 1
*DEFINE_CURVE
1 0 0.0000000 0.0000000 0.0000000 0.0000000
0.00000000E+00 1.00000000E+00
1.00000000E+06 1.00000000E+00
*BOUNDARY_PRESCRIBED_MOTION_NODE
$
*NODE
$
*ELEMENT_SOLID
$
*END
Figures
Figures
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: channel_B.k

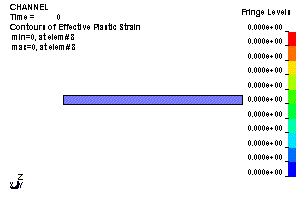

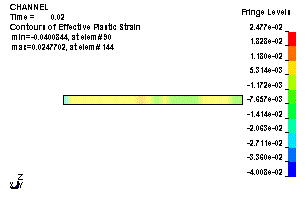

Animated Result
