Sloshing A

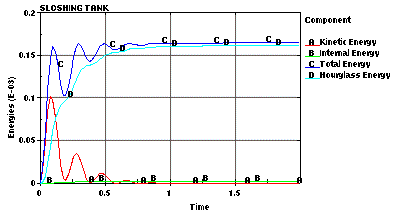

This is a Lagrangian sloshing model. It has a viscous behavior, as can be seen by looking at the energy balance. Download is available in the download section of this document.
Keywords
Keywords
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: sloshing_A.k
The used Keywords in alphabetical order.
*CONTROL_ENERGY *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DATABASE_GLSTAT *DATABASE_TRACER *DATABASE_TRHIST *DEFINE_CURVE *ELEMENT_SOLID *END *EOS_GRUNEISEN *KEYWORD *LOAD_BODY_Y *MAT_NULL *NODE *PART *SECTION_SOLID *TITLE
Reduced Input
Reduced Input
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: sloshing_A.k
*Node and *Element Cards are removed.
*KEYWORD
*TITLE
Sloshing tank
*CONTROL_ENERGY
2 2 1 1
*DATABASE_GLSTAT
0.02
*CONTROL_TERMINATION
2.0
*DATABASE_BINARY_D3PLOT
0.02
*DATABASE_TRHIST
0.02
*DATABASE_TRACER
0.0 0 0.01 0.1 0.005
*CONTROL_TIMESTEP
0.0 0.7
*MAT_NULL
1 1000.0 -1.0E+11
*EOS_GRUNEISEN
1 100.0
*SECTION_SOLID
1 1
*PART
1 1 1 1 0 0 0 0
*LOAD_BODY_Y
1 1.0
*DEFINE_CURVE
1
0.0 , 9.81
10.0, 9.81
*NODE
$
*ELEMENT_SOLID
$
*END

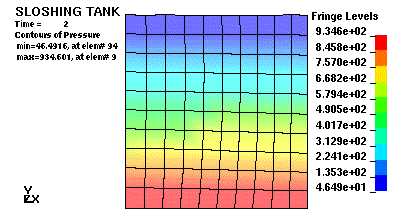

Figures
Figures
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: sloshing_A.k

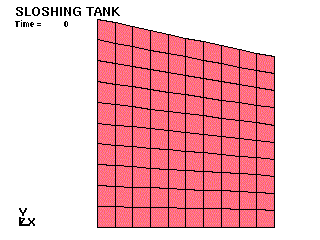

Animated Result
Animated Result
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: sloshing_A.k
