Adaptive III
Thinning of a strip is modeled with four node shell elements. Adaptive mesh refinement with three refinement levels is used. Compare example thinning1.k for usage of three node elements. Download is available in the download section of this document
Keywords
*BOUNDARY_PRESCRIBED_MOTION_NODE *CONTROL_ADAPTIVE *CONTROL_CONTACT *CONTROL_CPU *CONTROL_DAMPING *CONTROL_ENERGY *CONTROL_OUTPUT *CONTROL_SHELL *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DATABASE_BINARY_D3THDT *DATABASE_EXTENT_BINARY *DEFINE_CURVE *ELEMENT_SHELL *END *KEYWORD *MAT_PLASTIC_KINEMATIC *NODE *PART *SECTION_SHELL *TITLE
Reduced Input
*KEYWORD
*control_adaptive
$ | | | | | | | |
2.e-3 20. 3 1
1 .095
*PART
1 1 1 0 0 0 1 0
*TITLE
adapt based on shell thinnig
*CONTROL_TERMINATION
0.0199800 0 0.0000000 0 0.0000000
*CONTROL_TIMESTEP
0.0000000 0.6000000 0 0.0000000 0.0000000 0 0 0
*CONTROL_SHELL
0.0000000 0 0 1 0 0 0
*CONTROL_DAMPING
0 0.0000000 0.0000000 0.0000000 0.0000000 0 0.0000000 0
*CONTROL_CONTACT
0.0000000 0.0000000 0 0 0 0 0
0 0 0 0 0.0000000 0 0 0
*CONTROL_OUTPUT
0 0 0 0 0.0000000 0 0
*CONTROL_ENERGY
1 2 1 1
*DATABASE_BINARY_D3PLOT
2.00000-4 0
*DATABASE_BINARY_D3THDT
100.00000
*DATABASE_EXTENT_BINARY
0 0 0 0 0 0 0 0
0 0 0 0 0 0
*CONTROL_CPU
0.0000000
*MAT_PLASTIC_KINEMATIC
1 7.00000-3 3.00000+6 0.3000000 40000.000 2000.0000 0.0000000
0.0000000 0.0000000 0.0000000
*SECTION_SHELL
1 0 0.0000000 0.0000000 0.0000000 0.0000000
0.1000000 0.1000000 0.1000000 0.1000000 0.0000000
*NODE
$
*ELEMENT_SHELL
$
*DEFINE_CURVE
1 0 0.0000000 0.0000000 0.0000000 0.0000000
0.00000000E+00 0.00000000E+00
2.19999999E-02 1.70000002E+00
*BOUNDARY_PRESCRIBED_MOTION_NODE
$
*END

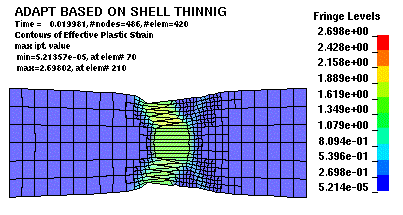

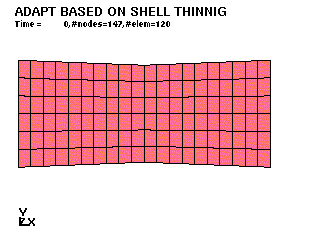

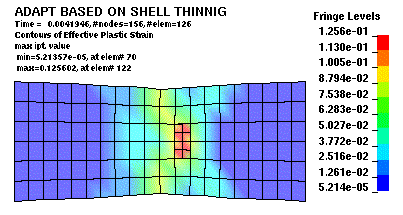

Figures
Animated Result
