Elements
Different element types are presented

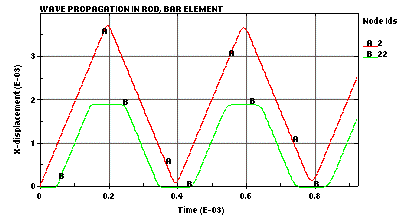

Rod IFile rod.k demonstrates wave propagation in one dimension using bar elements. |

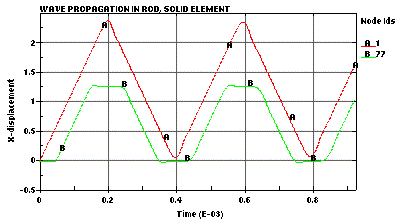

Rod IIFile rodsol.k demonstrates wave propagation in one dimension using solid elements. |

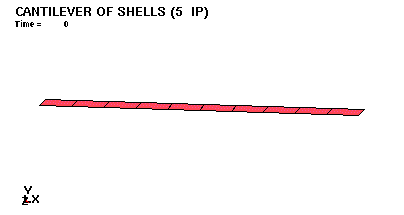

Shell IFile shells1.k shows a cantilever beam modeled with shell elements using five integration points through thickness and standard integration rule. See file shells2.k for user-defined integration rule. |

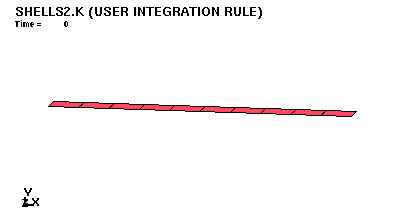

Shell IIFile shells2.k shows a cantilever beam modeled with shell elements using five integration points through thickness and user-defined integration rule. With this it is possible to use different stiffnesses in the cross-section of the shell. |
