Preload

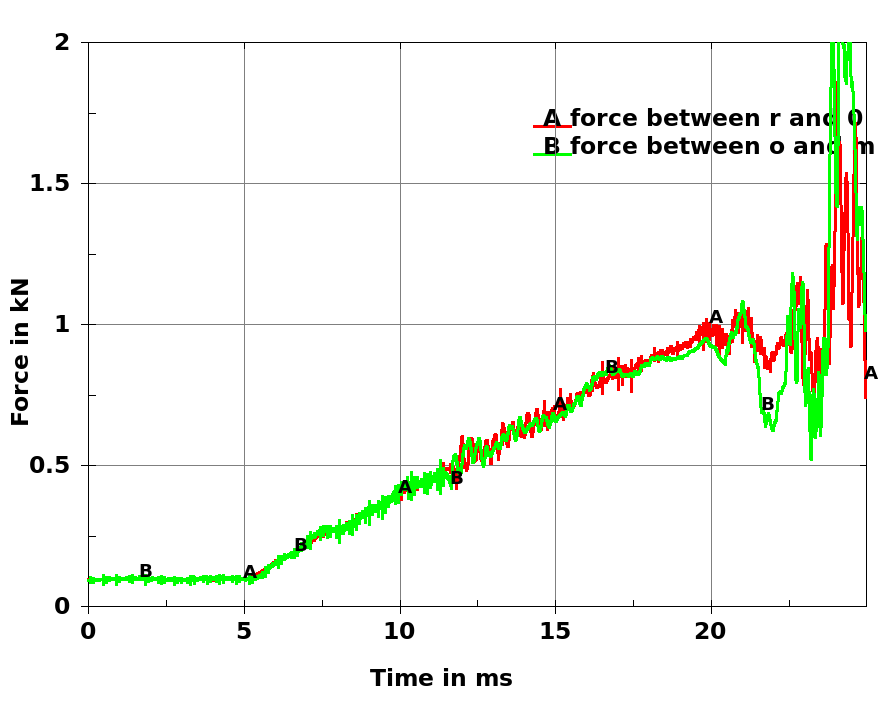

Example showing the use of dynamic relaxation to preload a system with a force.
*KEYWORD_ID
PRELOAD
*TITLE
SHOW CASE: PRELOAD
*CONTROL_MPP_IO_NODUMP
*CONTROL_TERMINATION
      25.0         0       0.0       0.0       0.0         0
*DATABASE_GLSTAT
    3.0E-3         1         0         1
*DATABASE_MATSUM
    3.0E-3         1         0         1
*DATABASE_RCFORC
    3.0E-3         1         0         1
*DATABASE_SLEOUT
    3.0E-3         1         0         1
*DATABASE_BINARY_D3PLOT
       0.5         0         0         0         0
*DATABASE_HISTORY_NODE
      3016      3124      4144      4198      4256      4310      4368      4422
*MAT_PIECEWISE_LINEAR_PLASTICITY_TITLE
steel
         1   7.86E-6     210.0       0.3      0.25       0.0       0.0       0.0
       0.0       0.0         0         0       0.0
       0.0    4.0E-2    9.0E-2      0.17      0.26      0.37       0.4       0.0
      0.25       0.3      0.34      0.38      0.43      0.52       0.6       0.0
*MAT_RIGID_TITLE
rigid fixed
         2   7.86E-6     210.0       0.3       0.0       0.0       0.0
       1.0       7.0       7.0
         0       0.0       0.0       0.0       0.0       0.0
*MAT_RIGID_TITLE
rigid x free
         3   7.86E-6     210.0       0.3       0.0       0.0       0.0
       1.0       5.0       7.0
         0       0.0       0.0       0.0       0.0       0.0
*MAT_PIECEWISE_LINEAR_PLASTICITY_TITLE
plastic
         4    1.0E-6       1.0       0.3       0.1      0.25       0.0       0.0
       0.0       0.0         0         0       0.0
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
*SECTION_SHELL
         1        16     0.833         5       1.0       0.0         0         1
       0.4       0.4       0.4       0.4       0.0       0.0       0.0         0
*SECTION_SOLID_TITLE
solid
         2         2         0
*PART
D rigid fix
         1         1         2         0         0         0         0         0
*PART
Y rigid fix
         2         1         2         0         0         0         0         0
*PART
A rigid fix
         3         1         2         0         0         0         0         0
*PART
N rigid fix
         4         1         2         0         0         0         0         0
*PART
m deformable
         5         1         1         0         0         0         0         0
*PART
r rigid x free
         7         1         3         0         0         0         0         0
*PART
e rigid fix
         8         1         2         0         0         0         0         0
*PART
cylinder rigid fix
         9         1         2         0         0         0         0         0
*PART
o deformable solid
        10         2         4         0         0         0         0         0
*NODE
*ELEMENT_SHELL
*ELEMENT_SOLID
*DEFINE_CURVE_TITLE
load during initialization
         6         1       0.0       0.0       0.0       0.0         0
                 0.0                 0.1
           5.0000000          0.10000000
           50.000000          0.10000000
*DEFINE_CURVE_TITLE
load during transient simulation
         7         0       0.0       0.0       0.0       0.0         0
                 0.0          0.10000000
           5.0000000          0.10000000
           20.000000           1.0000000
           50.000000           1.0000000
*BOUNDARY_SPC_SET
         1         0         1         1         1         0         0         0
*SET_NODE_LIST
*LOAD_RIGID_BODY
         7         1         6      -1.0         0
         7         1         7      -1.0         0
*CONTACT_AUTOMATIC_SINGLE_SURFACE_ID
         1contact m o r
         2         0         2         0         0         0         1         1
       0.2       0.0       0.0       0.0      20.0         0       0.0       0.0
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
         1       0.0         0       0.0       0.0         0         0         0
*SET_PART_LIST_TITLE
parts in contact
         2       0.0       0.0       0.0       0.0
         5         7        10
*CONTACT_FORCE_TRANSDUCER_PENALTY_ID
         2force between r o
         7        10         3         3         0         0         1         1
       0.0       0.0       0.0       0.0       0.0         0       0.0       0.0
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
*CONTACT_FORCE_TRANSDUCER_PENALTY_ID
         3force between o m
        10         5         3         3         0         0         1         1
       0.0       0.0       0.0       0.0       0.0         0       0.0       0.0
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
*END
