Bar II
This example shows the impact of two equivalent bars made of plastic material against a planar rigid wall. The upper bar is calculated using Lagrangian discretization, the lower one is calculated using SPH method. Download is available in the download section of this document.
Keywords
Keywords
This example has been taken from the SPH class of Jean Luc Lacome. Example name: bar2.k
The used Keywords in alphabetical order.
*CONTROL_CONTACT *CONTROL_CPU *CONTROL_DAMPING *CONTROL_ENERGY *CONTROL_OUTPUT *CONTROL_SHELL *CONTROL_SPH *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DATABASE_EXTENT_BINARY *DATABASE_GLSTAT *DATABASE_MATSUM *DATABASE_RCFORC *DATABASE_RWFORC *DATABASE_SLEOUT *ELEMENT_SHELL *ELEMENT_SPH *END *INITIAL_VELOCITY *KEYWORD *MAT_PLASTIC_KINEMATIC *NODE *PART *RIGIDWALL_PLANAR *SECTION_SHELL *SECTION_SPH *SET_NODE_LIST_GENERATE *TITLE
Reduced Input
Reduced Input
This example has been taken from the SPH class of Jean Luc Lacome. Example name: bar2.k
*Node and *Element Cards are removed.
*KEYWORD
$* LS-DYNA Keyword file: LSTC LS-PRE/POST Ver 1.0(Beta)- 31OCT2002(1553)
$* Total Number of Nodes = 6081,Largest node ID = 1004800
$* Total Number of Shells = 1200,Largest Shell ID = 1200
$* Total Number of Parts = 2,Largest Part ID = 101
$* Total Number of Mats = 2 Largest Mat ID = 2
*TITLE
SPH / TP1 bis Impact barre 2D contre SW
*CONTROL_CONTACT
$* slsfac rwpnal islchk shlthk penopt thkchg orien enmass
0.0 0.0
$* usrstr usrfrc nsbcs interm xpene ssthk ecdt tiedprj
0 0 0 0 0.0
*CONTROL_CPU
$* cputim
0.0
*CONTROL_DAMPING
$* nrcyck drtol drfctr drterm tssfdr irelal edttl idrflg
0 0.0 0.0 0.0 0.0 0 0.0
*CONTROL_ENERGY
$* hgen rwen slnten rylen
2 2 2 1
*CONTROL_OUTPUT
$* npopt neecho nrefup iaccop opifs ipnint ikedit iflush
0 0 0 0 0.0
*CONTROL_SHELL
$* wrpang esort irnxx istupd theory bwc miter proj
0.0
*CONTROL_SPH
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ *CONTROL_SPH $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$* ncbs boxid dt dim memory form start maxv
0 0 0.0 2 0 0 0.0 0.0
*CONTROL_TERMINATION
$* endtim endcyc dtmin endeng endmas
0.035000 0 0.0 0.0 0.0
*CONTROL_TIMESTEP
$* dtinit tssfac isdo tslimt dt2ms lctm erode ms1st
0.0 0.900000 0 0.0 0.0
*DATABASE_GLSTAT
4.0000e-04
*DATABASE_MATSUM
4.0000e-04
*DATABASE_RCFORC
4.0000e-04
*DATABASE_RWFORC
4.0000e-04
*DATABASE_SLEOUT
4.0000e-04
*DATABASE_BINARY_D3PLOT
0.004000
*DATABASE_EXTENT_BINARY
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0
*ELEMENT_SHELL
$
*ELEMENT_SPH
$
*NODE
$
*INITIAL_VELOCITY
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ INITIAL CONDITION
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
0 0 0
-50.00000 0.0 0.0 0.0 0.0 0.0
*PART
$* title
$* pid secid mid eosid hgid grav adpopt tmid
1 1 1
*SECTION_SHELL
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ *LAGRANGIAN PART $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$* secid elform shrf nip propt qr/irid icomp setyp
1 13 0.0 0 0 0.0
$* t1 t2 t3 t4 nloc marea
1.000000 1.000000 1.000000 1.000000 0 0.0
*MAT_PLASTIC_KINEMATIC
$* mid ro e pr sigy etan beta
1 0.0027106.8900e+04 0.330000 117.0000 6.800000 1.000000
$* src srp fs vp
0.0 0.0 0.0 0.0
*PART
$* title
$* pid secid mid eosid hgid grav adpopt tmid
101 101 1
*SECTION_SPH
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ *SPH PART $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$* secid cslh hmin hmax sphini death start
101 1.300000 0.0 0.0 0.0 0.0 0.0
*MAT_PLASTIC_KINEMATIC
$* mid ro e pr sigy etan beta
2 0.0027106.8900e+04 0.330000 117.0000 6.800000 1.000000
$* src srp fs vp
0.0 0.0 0.0 0.0
*RIGIDWALL_PLANAR
0 0 0 0.0
0.0 0.0 0.0 1.000000 0.0 0.0 0.0 0.0
*SET_NODE_LIST_GENERATE
101 0.0 0.0 0.0 0.0
1000001 1004800
*END

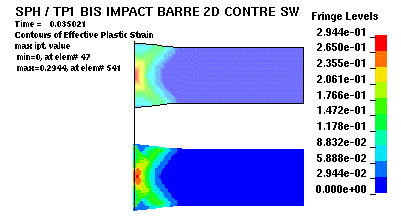

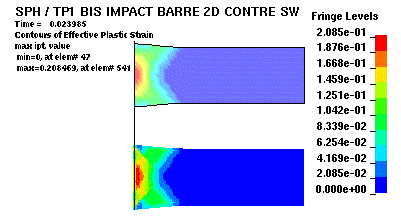

Figures
Figures
This example has been taken from the SPH class of Jean Luc Lacome. Example name: bar2.k

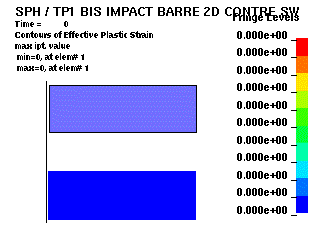

Animated Result
Animated Result
This example has been taken from the SPH class of Jean Luc Lacome. Example name: bar2.k
