ALE by M. Souli and L. Olovsson
The examples in this section are from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. M'hamed Souli is Professor at the University in Lille France. Both authors are key developers for the powerful capabilities of the Eulerian Methods in LS-DYNA. You may access the examples separately by using the menu on the left. The examples run with LS-DYNA 970 and upwards.
AdvectionHow to define Eulerian formulation with advection, and different order advection is comparison. |
BirdTwo small idealized bird strike model. One is in Lagrangian and the other one is in Eulerian. |
PipeViscous fluid modeling |
ExplosionA plane strain model of a high explosive detonation in water is investigated with different meshes and the ALE method. |
FSIA bar impacts a water surface. The coupling of this model is simulated in different quadrature points. |

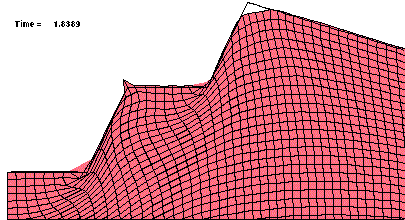

MiscModels utilizing the ALE method |
SloshingLagrangian and Eulerian sloshing models |
Taylor BarA quarter model of a Taylor bar impacting a rigid wall. This model is analyzed in different ALE methods. |
Download tgz file (Unix, Linux) with all examples
|
Download zip file (Windows) with all examples
|
Download example description
|
