Implicit Seat Pull

This problem demonstrates the ability to solve a complex, highly dynamic and nonlinear problem using the implicit solver of LS-DYNA. The load case will help users to set up seat pull simulations and similar problems. Please use a recent developer version of LS-DYNA (i.e. ls-dyna_mpp_d_dev_109569 or later) to compute this example.

Keywords

*KEYWORD
*TITLE
*CONTROL_ACCURACY
*CONTROL_BULK_VISCOSITY
*CONTROL_CONTACT
*CONTROL_ENERGY
*CONTROL_HOURGLASS
*CONTROL_IMPLICIT_AUTO
*CONTROL_IMPLICIT_DYNAMICS
*CONTROL_IMPLICIT_GENERAL
*CONTROL_IMPLICIT_SOLUTION
*CONTROL_MPP_IO_LSTC_REDUCE
*CONTROL_MPP_IO_NOD3DUMP
*CONTROL_MPP_IO_NODUMP
*CONTROL_MPP_IO_NOFULL
*CONTROL_OUTPUT
*CONTROL_PARALLEL
*CONTROL_SHELL
*CONTROL_SOLID
*CONTROL_SOLUTION
*CONTROL_TERMINATION
*CONTROL_TIMESTEP
*DATABASE_ABSTAT
*DATABASE_BNDOUT
*DATABASE_DEFORC
*DATABASE_ELOUT
*DATABASE_GLSTAT
*DATABASE_JNTFORC
*DATABASE_MATSUM
*DATABASE_NODOUT
*DATABASE_RBDOUT
*DATABASE_RCFORC
*DATABASE_RWFORC
*DATABASE_SBTOUT
*DATABASE_SECFORC
*DATABASE_SLEOUT
*DATABASE_SPCFORC
*DATABASE_SWFORC
*DATABASE_BINARY_D3DUMP
*DATABASE_BINARY_D3PLOT
*DATABASE_BINARY_INTFOR
*DATABASE_BINARY_RUNRSF
*DATABASE_EXTENT_BINARY
*BOUNDARY_SPC_SET
*SET_PART_LIST_TITLE
*CONTACT_AUTOMATIC_SURFACE_TO_SURFACE_MORTAR_ID
*CONTACT_AUTOMATIC_SINGLE_SURFACE_MORTAR
*SET_PART_ADD
*PART
*SECTION_DISCRETE
*MAT_SPRING_ELASTIC
*SECTION_SHELL
*MAT_RIGID
*MAT_PIECEWISE_LINEAR_PLASTICITY
*SECTION_BEAM
*MAT_ELASTIC
*SECTION_SEATBELT_TITLE
*MAT_SEATBELT_TITLE
*DEFINE_COORDINATE_SYSTEM_TITLE
*DEFINE_COORDINATE_SYSTEM
*DEFINE_CURVE
*DEFINE_CURVE_TITLE
*SET_NODE_LIST_TITLE
*SET_NODE_LIST
*CONSTRAINED_EXTRA_NODES_NODE
*CONSTRAINED_EXTRA_NODES_SET
*CONSTRAINED_JOINT_REVOLUTE_ID
*CONSTRAINED_JOINT_STIFFNESS_GENERALIZED
*CONSTRAINED_NODAL_RIGID_BODY
*CONSTRAINED_SPOTWELD
*ELEMENT_SHELL
*ELEMENT_BEAM
*ELEMENT_MASS
*NODE
*LOAD_RIGID_BODY
*ELEMENT_SEATBELT
*ELEMENT_DISCRETE
*END

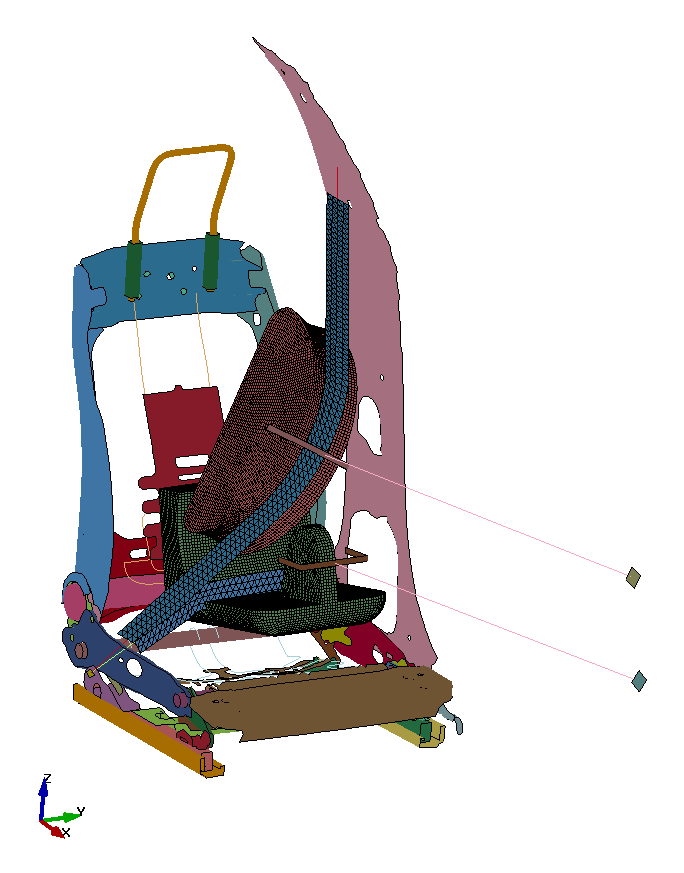

Animated Result

Main Input

KEYWORD
$
$ Use a recent developer version of LS-DYNA, i.e. ls-dyna_mpp_d_dev_109569 or later
$
*CONTROL_ACCURACY
$#     osu       inn    pidosu      iacc
         0         4         0         1
*CONTROL_BULK_VISCOSITY
$#      q1        q2      type     btype
       0.0       0.0        -2         0
*CONTROL_CONTACT
$#  slsfac    rwpnal    islchk    shlthk    penopt    thkchg     orien    enmass
       0.0       1.0         2         2         0         0         2         0
$#  usrstr    usrfrc     nsbcs    interm     xpene     ssthk      ecdt   tiedprj
         0         0         0         1       0.0         1         0         0
$#   sfric     dfric       edc       vfc        th     th_sf    pen_sf
       0.0       0.0       0.0       0.0       0.0       0.0       0.0
$#  ignore    frceng   skiprwg    outseg   spotstp   spotdel   spothin
         1         1         0         0         0         10.80000001
$#    isym    nserod    rwgaps    rwgdth     rwksf      icov    swradf    ithoff
         0         0         1       0.0       0.0         0       0.0         0
$#  shledg    pstiff    ithcnt    tdcnof     ftall    unused    shltrw
         1         0         0         0         0                 0.0
*CONTROL_ENERGY
$#    hgen      rwen    slnten     rylen
         2         2         2         2
*CONTROL_HOURGLASS
$#     ihq        qh
         4      0.03
*CONTROL_IMPLICIT_AUTO
$#   iauto    iteopt    itewin     dtmin     dtmax     dtexp     kfail    kcycle
         1       100         5       0.0     0.001       0.0         0         0
*CONTROL_IMPLICIT_DYNAMICS
$#   imass     gamma      beta    tdybir    tdydth    tdybur     irate
         10.60000002      0.38       0.01.00000E281.00000E28         1
*CONTROL_IMPLICIT_EIGENVALUE
$#    neig    center     lflag    lftend     rflag    rhtend    eigmth    shfscl
        00       0.0         0-1.0000E29         01.00000E29         2       0.0
$#  isolid     ibeam    ishell   itshell    mstres    evdump   mstrscl
         0         0         0         0         0         0      0.01
*CONTROL_IMPLICIT_GENERAL
$#  imflag       dt0    imform      nsbs       igs     cnstn      form    zero_v
         1    0.0010         2         1         2         0         0         0
*CONTROL_IMPLICIT_SOLUTION
$#  nsolvr    ilimit    maxref     dctol     ectol     rctol     lstol    abstol
        12         1        35     0.001      0.011.00000E100.89999998-1.000E+01
$#   dnorm    diverg     istif   nlprint    nlnorm   d3itctl     cpchk
         2         1         1         3         4         0         0
$#  arcctl    arcdir    arclen    arcmth    arcdmp    arcpsi    arcalf    arctim
         0         0       0.0         1         2         0         0         0
$#   lsmtd     lsdir      irad      srad      awgt      sred
         4         2       0.0       0.0       0.0       0.0
*CONTROL_MPP_IO_LSTC_REDUCE
*CONTROL_MPP_IO_NOD3DUMP
*CONTROL_MPP_IO_NODUMP
*CONTROL_MPP_IO_NOFULL
*CONTROL_OUTPUT
$#   npopt    neecho    nrefup    iaccop     opifs    ipnint    ikedit    iflush
         1         3         0         01.00000E-4         0         0         0
$#   iprtf    ierode     tet10    msgmax    ipcurv      gmdt   ip1dblt      eocs
         0         0         2        50         0       0.0         0         0
$#   tolev    newleg    frfreq     minfo    solsig    msgflg    cdetol
         2         0         1         1         0         0      10.0
*CONTROL_PARALLEL
$#    ncpu    numrhs     const      para
         0         0         1         1
*CONTROL_SHELL
$#  wrpang     esort     irnxx    istupd    theory       bwc     miter      proj
      40.0         1        -1         4         2         1         1         1
$# rotascl    intgrd    lamsht    cstyp6    tshell
       0.0         0         0         0         0
$# psstupd   sidt4tu     cntco    itsflg    irquad
         0         0         2         0         2
$#  nfail1    nfail4   psnfail    keepcs     delfr   drcpsid    drcprm
         0         0         0         0         0         0       1.0
*CONTROL_SOLID
$#   esort   fmatrix   niptets    swlocl    psfail   t10jtol
         1         0         0         2         0       0.0
$#   pm1     pm2     pm3     pm4     pm5     pm6     pm7     pm8     pm9    pm10
       0       0       0       0       0       0       0       0       0       0
*CONTROL_SOLUTION
$#    soln       nlq     isnan     lcint
         0         0         0       500
*CONTROL_TERMINATION
$#  endtim    endcyc     dtmin    endeng    endmas
       0.2         0     0.001       0.0       0.0
*CONTROL_TIMESTEP
$#  dtinit    tssfac      isdo    tslimt     dt2ms      lctm     erode     ms1st
       0.00.89999998         0       0.0-6.0000E-7         0         1         0
$#  dt2msf   dt2mslc     imscl    unused    unused     rmscl
       0.0         0         0                           0.0
*DATABASE_ABSTAT
$#      dt    binary      lcur     ioopt
1.00000E-4         2         0         1
*DATABASE_BNDOUT
$#      dt    binary      lcur     ioopt
1.00000E-4         2         0         1
*DATABASE_DEFORC
$#      dt    binary      lcur     ioopt
1.00000E-4         2         0         1
*DATABASE_ELOUT
$#      dt    binary      lcur     ioopt   option1   option2   option3   option4
1.00000E-4         2         0         1         0         0         0         0
*DATABASE_GLSTAT
$#      dt    binary      lcur     ioopt
1.00000E-4         2         0         1
*DATABASE_JNTFORC
$#      dt    binary      lcur     ioopt
     0.001         2         0         1
*DATABASE_MATSUM
$#      dt    binary      lcur     ioopt
     0.001         2         0         1
*DATABASE_NODOUT
$#      dt    binary      lcur     ioopt   option1   option2
1.00000E-5         2         0         1       0.0         0
*DATABASE_RBDOUT
$#      dt    binary      lcur     ioopt
     0.005         2         0         1
*DATABASE_RCFORC
$#      dt    binary      lcur     ioopt
     0.001         2         0         1
*DATABASE_RWFORC
$#      dt    binary      lcur     ioopt
     0.001         2         0         1
*DATABASE_SBTOUT
$#      dt    binary      lcur     ioopt
     0.001         2         0         1
*DATABASE_SECFORC
$#      dt    binary      lcur     ioopt
1.00000E-4         2         0         1
*DATABASE_SLEOUT
$#      dt    binary      lcur     ioopt
     0.001         2         0         1
*DATABASE_SPCFORC
$#      dt    binary      lcur     ioopt
     0.001         2         0         1
*DATABASE_SWFORC
$#      dt    binary      lcur     ioopt
     0.001         2         0         1
*DATABASE_BINARY_D3DUMP
$#    cycl      lcdt      beam     npltc    psetid
   40000.0         0         0         0         0
*DATABASE_BINARY_D3PLOT
$#      dt      lcdt      beam     npltc    psetid
1.00000E-4         0         0         0         0
$#   ioopt
         0
*DATABASE_BINARY_INTFOR
$#      dt      lcdt      beam     npltc    psetid
     0.001         0         0         0         0
$#   ioopt
         0
*DATABASE_BINARY_RUNRSF
$#    cycl        nr      beam     npltc    psetid
   99999.0         0         0         0         0
*DATABASE_EXTENT_BINARY
$#   neiph     neips    maxint    strflg    sigflg    epsflg    rltflg    engflg
         0         0         3         0         1         1         1         1
$#  cmpflg    ieverp    beamip     dcomp      shge     stssz    n3thdt   ialemat
         0         0         0         1         1         1         2         1
$# nintsld   pkp_sen      sclp     hydro     msscl     therm    intout    nodout
         0         0       1.0         0         0         0
$#    dtdt    resplt     neipb
         0         1         0
*BOUNDARY_SPC_SET
$#    nsid       cid      dofx      dofy      dofz     dofrx     dofry     dofrz
   7600202         0         1         1         1         1         1         1
*SET_NODE_LIST_TITLE
NODESET(SPC) 7600202
$#     sid       da1       da2       da3       da4    solver
   7600202       0.0       0.0       0.0       0.0MECH
$#    nid1      nid2      nid3      nid4      nid5      nid6      nid7      nid8
  15953694  15953698  15953693  15953697  15953692  15953696         0         0
$
*CONTACT_AUTOMATIC_SURFACE_TO_SURFACE_MORTAR_ID
$#     cid                                                                 title
         3Belts to  SashBlocks
$#    ssid      msid     sstyp     mstyp    sboxid    mboxid       spr       mpr
   9000007   7600201         3         2         0         0         0         0
$#      fs        fd        dc        vc       vdc    penchk        bt        dt
0.349999990.34999999       0.0       0.0       0.0         0       0.0       0.0
$#     sfs       sfm       sst       mst      sfst      sfmt       fsf       vsf
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
$#    soft    sofscl    lcidab    maxpar     sbopt     depth     bsort    frcfrq
         1       0.0         0       0.0       0.0         0         0         0
$#  penmax    thkopt    shlthk     snlog      isym     i2d3d    sldthk    sldstf
       0.0         0         0         0         0         0       0.0       0.0
$#    igap    ignodprfac/mpadtstif/mpar2   unused     unused    flangl   cid_rcf
         0         1       0.0       0.0                           0.0         0
*SET_PART_LIST_TITLE
SET_PART_0000118101
$#     sid       da1       da2       da3       da4    solver
   7600201       0.0       0.0       0.0       0.0MECH
$#    pid1      pid2      pid3      pid4      pid5      pid6      pid7      pid8
   7600251         0         0         0         0         0         0         0
*CONTACT_AUTOMATIC_SURFACE_TO_SURFACE_MORTAR_ID
$#     cid                                                                 title
         4Belts to  LapBlocks
$#    ssid      msid     sstyp     mstyp    sboxid    mboxid       spr       mpr
   9000003   7600202         3         2         0         0         0         0
$#      fs        fd        dc        vc       vdc    penchk        bt        dt
0.349999990.34999999       0.0       0.0       0.0         0       0.0       0.0
$#     sfs       sfm       sst       mst      sfst      sfmt       fsf       vsf
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
$#    soft    sofscl    lcidab    maxpar     sbopt     depth     bsort    frcfrq
         1       0.0         0       0.0       0.0         0         0         0
$#  penmax    thkopt    shlthk     snlog      isym     i2d3d    sldthk    sldstf
       0.0         0         0         0         0         0       0.0       0.0
$#    igap    ignodprfac/mpadtstif/mpar2   unused     unused    flangl   cid_rcf
         0         1       0.0       0.0                           0.0         0
*SET_PART_LIST_TITLE
SET_PART_0000118103
$#     sid       da1       da2       da3       da4    solver
   7600202       0.0       0.0       0.0       0.0MECH
$#    pid1      pid2      pid3      pid4      pid5      pid6      pid7      pid8
   7600253         0         0         0         0         0         0         0
*CONTACT_AUTOMATIC_SURFACE_TO_SURFACE_MORTAR_ID
$#     cid                                                                 title
         6
$#    ssid      msid     sstyp     mstyp    sboxid    mboxid       spr       mpr
   7600253   7600214         3         2         0         0         1         1
$#      fs        fd        dc        vc       vdc    penchk        bt        dt
       0.2       0.2       0.0       0.0       0.0         0       0.0       0.0
$#     sfs       sfm       sst       mst      sfst      sfmt       fsf       vsf
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
*SET_PART_LIST
$#     sid       da1       da2       da3       da4    solver
   7600214       0.0       0.0       0.0       0.0MECH
$#    pid1      pid2      pid3      pid4      pid5      pid6      pid7      pid8
   7600214   7600220   7600243         0         0         0         0         0
*CONTACT_AUTOMATIC_SINGLE_SURFACE_MORTAR
$#     cid                                                                 title
$
$
$: Cross-reference summary for SET_PART 7600200
$:---------------------------------------------
$: CONTACT <No label>
$
$#    ssid      msid     sstyp     mstyp    sboxid    mboxid       spr       mpr

   7600200         0         2         0         0         0         0         0
$#      fs        fd        dc        vc       vdc    penchk        bt        dt
       0.2       0.1     0.001       0.0       0.0         0       0.0       0.0
$#     sfs       sfm       sst       mst      sfst      sfmt       fsf       vsf
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
$#    soft    sofscl    lcidab    maxpar     sbopt     depth     bsort    frcfrq
         2       0.0         0       0.0       3.0         0         0         0
$#  penmax    thkopt    shlthk     snlog      isym     i2d3d    sldthk    sldstf
       0.0         0         0         0         0         0       0.0       0.0
$#    igap    ignodprfac/mpadtstif/mpar2   unused     unused    flangl   cid_rcf
         0         1       0.0       0.0                           0.0         0
$
$
$: Cross-reference summary for SET_PART 7600200
$:---------------------------------------------
$: CONTACT <No label>
$
*SET_PART_ADD
$#     sid       da1       da2       da3       da4    solver
   7600200       0.0       0.0       0.0       0.0MECH
$ Seat
$#   psid1     psid2     psid3     psid4     psid5     psid6     psid7     psid8
   7600196         0         0         0         0         0         0         0
*PART
$#                                                                         title
springs for implicit
$#     pid     secid       mid     eosid      hgid      grav    adpopt      tmid
      1000      1000      1000         0         0         0         0         0
*SECTION_DISCRETE
$#   secid       dro        kd        v0        cl        fd
      1000         0       0.0       0.0       0.0       0.0
$#     cdl       tdl
       0.0       0.0
*MAT_SPRING_ELASTIC
$#     mid         k
      1000      0.01
*PART
$#                                                                         title
springs for implicit
$#     pid     secid       mid     eosid      hgid      grav    adpopt      tmid
      2000      2000      2000         0         0         0         0         0
*SECTION_DISCRETE
$#   secid       dro        kd        v0        cl        fd
      2000         0       0.0       0.0       0.0       0.0
$#     cdl       tdl
       0.0       0.0
*MAT_SPRING_ELASTIC
$#     mid         k
      2000  10000.00

Loadcase

seat pull
