Joint Rev/Trans

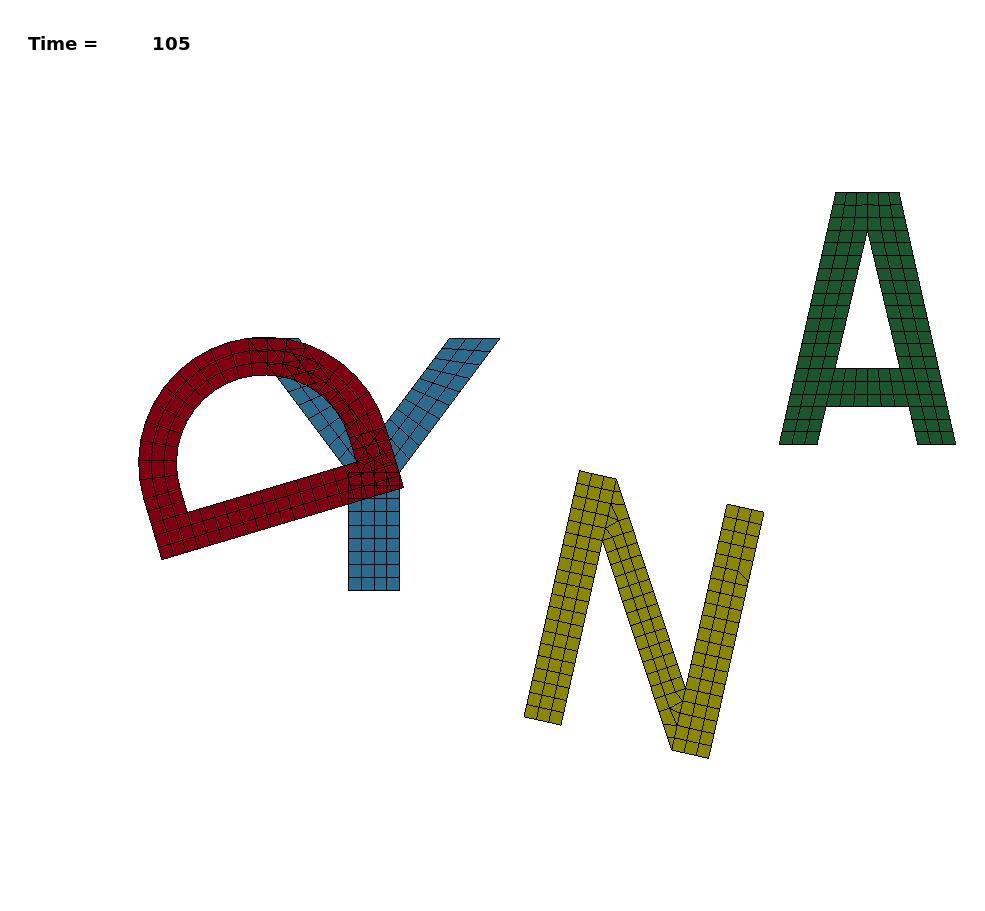

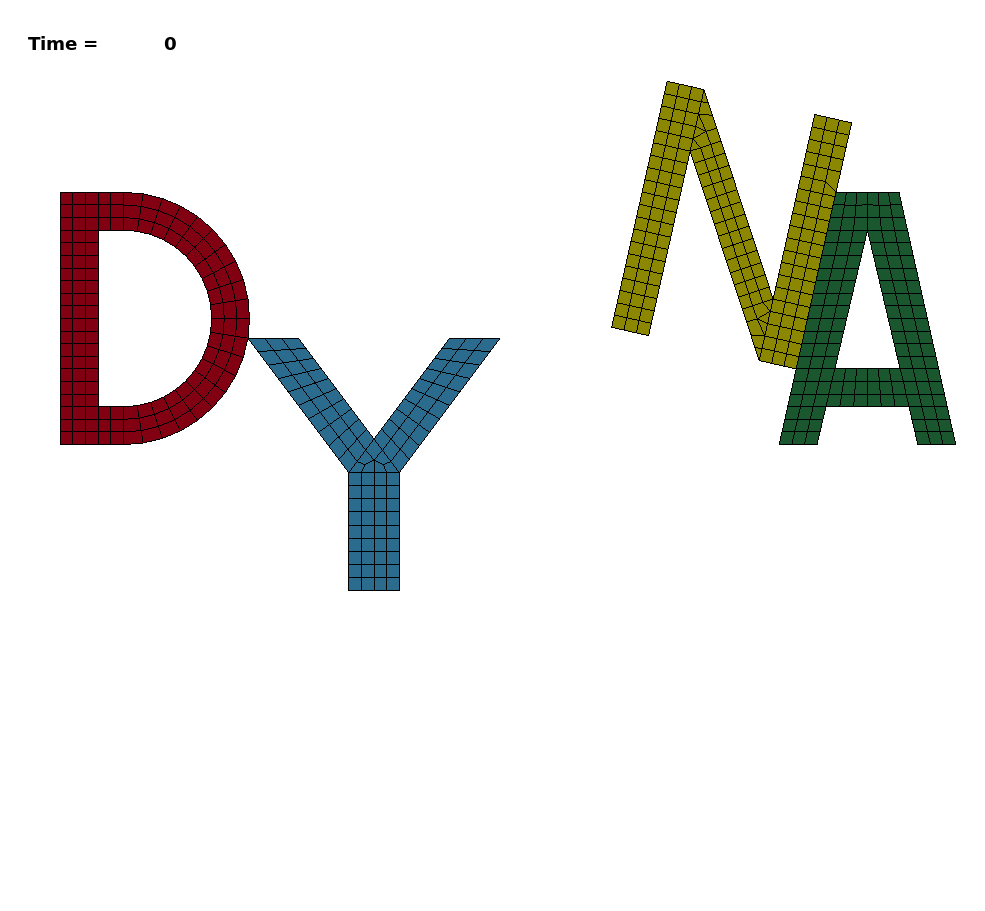

Example showing the use of a revolute and a translation joint definition between two rigid bodys. This option can be used to constrain the motion of rigid bodys.

*CONSTRAINED_JOINT_REVOLUTE_ID
*CONSTRAINED_JOINT_TRANSLATIONAL_ID
*CONTROL_MPP_IO_NODUMP
*CONTROL_TERMINATION
*DATABASE_JNTFORC
*DATABASE_BINARY_D3PLOT
*DEFINE_CURVE
*DEFINE_CURVE_TITLE
*ELEMENT_SHELL
*END
*HOURGLASS
*KEYWORD_ID
*LOAD_BODY_Z
*MAT_PIECEWISE_LINEAR_PLASTICITY
*MAT_RIGID_TITLE
*MAT_RIGID_TITLE
*MAT_RIGID_TITLE
*NODE
*PART
*SECTION_SHELL
*TITLE

*KEYWORD_ID
JOINT_REV_TRANS
*TITLE
SHOW CASE: JOINTS REV/TRANS
*CONTROL_MPP_IO_NODUMP
*CONTROL_TERMINATION
     300.0         0       0.0       0.0       0.0         0
*DATABASE_JNTFORC
    5.0E-2         1         0         1
*DATABASE_BINARY_D3PLOT
       5.0         0         0         0         0
*MAT_PIECEWISE_LINEAR_PLASTICITY
         1   7.86E-6     210.0       0.3      0.25       0.0       0.0       0.0
       0.0       0.0         2         0       0.0
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0
*MAT_RIGID_TITLE
rigid fixed
         2   7.86E-6     210.0       0.3       0.0       0.0       0.0
       1.0       7.0       7.0
         0       0.0       0.0       0.0       0.0       0.0
*MAT_RIGID_TITLE
rigid free
         3   7.86E-6     210.0       0.3       0.0       0.0       0.0
       0.0       0.0       0.0
         0       0.0       0.0       0.0       0.0       0.0
*MAT_RIGID_TITLE
rigid free trans xz
         4   7.86E-6     210.0       0.3       0.0       0.0       0.0
       1.0       2.0       7.0
         0       0.0       0.0       0.0       0.0       0.0
*SECTION_SHELL
         1         2     0.833         5       1.0       0.0         0         1
       1.0       1.0       1.0       1.0       0.0       0.0       0.0         0
*HOURGLASS
         1         4       0.1         0       1.5    6.0E-2       0.1       0.1
*PART
D rigid free
         1         1         3         0         0         0         0         0
*PART
Y rigid fix
         2         1         2         0         0         0         0         0
*PART
A rigid fix
         3         1         2         0         0         0         0         0
*PART
N rigid free trans xz
         4         1         4         0         0         0         0         0
*PART
m rigid fix
         5         1         2         0         0         0         0         0
*PART
o deformable
         6         1         1         0         0         0         0         0
*PART
r rigid free
         7         1         3         0         0         0         0         0
*PART
e rigid fix
         8         1         2         0         0         0         0         0
*NODE
*ELEMENT_SHELL*DEFINE_CURVE
         2         0       1.0    1.0E-3       0.0       0.0         0
                 0.0           249.99998
        3.9000001E-2           301.99997
        8.6000003E-2           337.99997
          0.17400000           381.00000
          0.25500000           425.99997
          0.32900000           472.99997
          0.36500001           519.99994
          0.39899999           600.00000
           1.0000000           610.00000
*DEFINE_CURVE_TITLE
constant gravity

         3         0       0.0       0.0       0.0       0.0         0
                 0.0        9.8099997E-3
           500.00000        9.8099997E-3
*CONSTRAINED_JOINT_REVOLUTE_ID
         1revolute joint
       752       420       569       120                           0.0       0.0
*CONSTRAINED_JOINT_TRANSLATIONAL_ID
         2translational joint
      1173      1750      1291      1864       959      1502       0.0       0.0
*LOAD_BODY_Z
         3       3.0         0

*END
