Solid
A rigid beam strikes a post near the top of the post. There is hole cut out of the lower portion of the post to reduce its' section modulus and thus, allow it to snap-off easier. In the first model, the post begins to break, but hourglassing starts to dominate the solution and the post does not completely snap.
*SECTION_SOLID Breaking Post Exhibits Hourglassing LS-DYNA Manual Section: *SECTION_SOLID Additional Sections: *CONTACT_ERODING_SINGLE_SURFACE *INITIAL_VELOCITY_GENERATION Example: Breaking Post Exhibits Hourglassing Filename: section_solid.hourglassing.k Description: A rigid beam strikes a post near the top of the post. There is hole cut out of the lower portion of the post to reduce its' section modulus and thus, allow it to snap-off easier. In the first model, the post begins to break, but hourglassing starts to dominate the solution and the post does not completely snap. In the second model, a fully integrated solid formulation is used for the post, causing the post to snap-off as desired. Model: The beam is constructed with rigid shell elements. An initial velocity is given to the beam using the *INITIAL_VELOCITY_GENERATION keyword. The post is constructed with solid elements using a piecewise linear plasticity material model with failure. Single point constraints (SPC's) are placed on the bottom of the post. Eroding single surface contact is required in order for the contact to behave properly while the post snaps in two (*CONTACT_ERODING_SINGLE_SURFACE). Results: The first model results are significantly different than the second model due to hourglassing.
*BOUNDARY_SPC_NODE *CONTACT_ERODING_SINGLE_SURFACE *CONTROL_ENERGY *CONTROL_OUTPUT *CONTROL_TERMINATION *DATABASE_BINARY_D3PLOT *DATABASE_BINARY_D3THDT *DATABASE_EXTENT_BINARY *DATABASE_GLSTAT *DATABASE_HISTORY_NODE *DATABASE_MATSUM *DATABASE_NODOUT *DATABASE_RBDOUT *ELEMENT_SHELL *ELEMENT_SOLID *END *INITIAL_VELOCITY_GENERATION *KEYWORD *MAT_PIECEWISE_LINEAR_PLASTICITY *MAT_RIGID *NODE *PART *SECTION_SHELL *SECTION_SOLID *TITLE
*KEYWORD
*TITLE

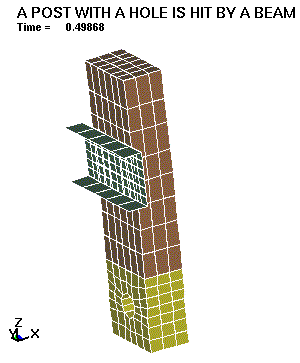

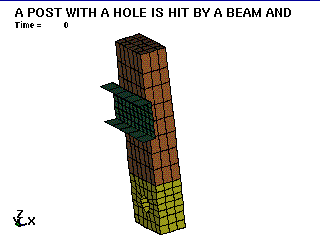

A post with a hole is hit by a beam and is supposed to snap at the hole.
$
$ LSTC Example
$
$ Last Modified: October 15, 1997
$
$$ This model uses constant stress solid element formulation (default: type 1)
$$ for the posts and default hourglass viscosity type 1. This formulation
$$ results in considerable hourglassing and incomplete failure of the post.
$
$ By switching the solid element formulation to fully integrated S/R (type 2)
$ results are much cleaner.
$
$ Units: mm, kg, ms, kN, GPa, kN-mm
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Control Ouput
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*CONTROL_TERMINATION
$ endtim endcyc dtmin endneg endmas
5.00
$
*CONTROL_ENERGY
$ hgen rwen slnten rylen
2 2
$
*CONTROL_OUTPUT
$ npopt neecho nrefup iaccop opifs ipnint ikedit
1 3
$
$
*DATABASE_BINARY_D3PLOT
$ dt lcdt
0.5
$
*DATABASE_EXTENT_BINARY
$ neiph neips maxint strflg sigflg epsflg rltflg engflg
$ cmpflg ieverp beamip
1
$
*DATABASE_BINARY_D3THDT
$ dt lcdt
999999
$
*DATABASE_GLSTAT
$ dt
0.10
$
*DATABASE_MATSUM
$ dt
0.10
$
*DATABASE_NODOUT
$ dt
0.10
$
*DATABASE_HISTORY_NODE
$ id1 id2 id3 id4 id5 id6 id7 id8
758
$
*DATABASE_RBDOUT
$ dt
0.10
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Contacts - Sliding Interfaces
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
*CONTACT_ERODING_SINGLE_SURFACE
$ ssid msid sstyp mstyp sboxid mboxid spr mpr
0
$ fs fd dc vc vdc penchk bt dt
$ sfs sfm sst mst sfst sfmt fsf vsf
$ isym erosop iadj
1 1
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Initial and Boundary Conditions
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
$$$$ The beam (part 3) is given an initial velocity towards the post.
$
*INITIAL_VELOCITY_GENERATION
$ sid styp omega vx vy vz
3 2 27.8 0.0 0.0
$ xc yc zc nx ny nz phase
$
$$$$ Fix the bottom nodes of the post.
$
*BOUNDARY_SPC_NODE
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$ nid cid x y z rx ry rz
163, 0,1,1,1, 1, 1, 1
166, 0,1,1,1, 1, 1, 1
169, 0,1,1,1, 1, 1, 1
172, 0,1,1,1, 1, 1, 1
175, 0,1,1,1, 1, 1, 1
178, 0,1,1,1, 1, 1, 1
181, 0,1,1,1, 1, 1, 1
184, 0,1,1,1, 1, 1, 1
187, 0,1,1,1, 1, 1, 1
307, 0,1,1,1, 1, 1, 1
310, 0,1,1,1, 1, 1, 1
313, 0,1,1,1, 1, 1, 1
316, 0,1,1,1, 1, 1, 1
319, 0,1,1,1, 1, 1, 1
322, 0,1,1,1, 1, 1, 1
391, 0,1,1,1, 1, 1, 1
394, 0,1,1,1, 1, 1, 1
397, 0,1,1,1, 1, 1, 1
400, 0,1,1,1, 1, 1, 1
403, 0,1,1,1, 1, 1, 1
406, 0,1,1,1, 1, 1, 1
493, 0,1,1,1, 1, 1, 1
496, 0,1,1,1, 1, 1, 1
499, 0,1,1,1, 1, 1, 1
589, 0,1,1,1, 1, 1, 1
592, 0,1,1,1, 1, 1, 1
645, 0,1,1,1, 1, 1, 1
648, 0,1,1,1, 1, 1, 1
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Parts and Materials
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
$$$ Part 3 shell: beam
$
$$$ Part 4 solid: lower_post
$
$$$ Part 5 solid: upper_post
$
$
*PART
$ pid sid mid eosid hgid grav adpopt
bumper
3 1 1
lower_post
4 2 2
upper_post
5 2 3
$
$
$$$$ Materials
$
$$ Bumper - Rigid, constrained to translate only in the x-direction
$
*MAT_RIGID
$ mid ro e pr n couple m alias
1 0.143E-02 200.0 0.33
$
$ cmo con1 con2
1.0 5 7
$
$ lco/a1 a2 a3 v1 v2 v3
$
$
$$ Post - the lower portion is softer and fails sooner than the upper portion
$
*MAT_PIECEWISE_LINEAR_PLASTICITY
$ mid ro e pr sigy etan eppf tdel
2 0.499E-06 11.37 0.32 0.0468 0.11
$
$ c p lcss lcsr
$ Plastic stress/strain curve
0.0000 0.2500
0.0468 0.0470
$
$
*MAT_PIECEWISE_LINEAR_PLASTICITY
$ mid ro e pr sigy etan eppf tdel
3 0.499E-06 110.37 0.32 0.0468 0.25
$
$ c p lcss lcsr
$ Plastic stress/strain curve
0.0000 0.2500
0.0468 0.0470
$
$
$$$$ Sections
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
1 2 3.0
$ t1 t2 t3 t4 nloc
1.54 1.54 1.54 1.54
$
$
*SECTION_SOLID
$ sid elform
2 1
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Nodes and Elements
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*NODE
$ nid x y z tc rc
32 -1.23794000E+02 1.200000000E+03 3.910000000E+02 0 0
33 -1.23794000E+02 1.257150000E+03 3.910000000E+02 0 0
34 -1.23794000E+02 1.314300000E+03 3.910000000E+02 0 0
35 -1.23794000E+02 1.371450000E+03 3.910000000E+02 0 0
36 -1.23794000E+02 1.428600000E+03 3.910000000E+02 0 0
37 -1.23794000E+02 1.485750000E+03 3.910000000E+02 0 0
48 -7.37940000E+01 1.200000000E+03 3.910000000E+02 0 0
49 -7.37940000E+01 1.257150000E+03 3.910000000E+02 0 0
50 -7.37940000E+01 1.314300000E+03 3.910000000E+02 0 0
51 -7.37940000E+01 1.371450000E+03 3.910000000E+02 0 0
52 -7.37940000E+01 1.428600000E+03 3.910000000E+02 0 0
53 -7.37940000E+01 1.485750000E+03 3.910000000E+02 0 0
64 -1.23794000E+02 1.200000000E+03 5.300000000E+02 0 0
65 -1.23794000E+02 1.257150000E+03 5.300000000E+02 0 0
66 -1.23794000E+02 1.314300000E+03 5.300000000E+02 0 0
67 -1.23794000E+02 1.371450000E+03 5.300000000E+02 0 0
68 -1.23794000E+02 1.428600000E+03 5.300000000E+02 0 0
69 -1.23794000E+02 1.485750000E+03 5.300000000E+02 0 0
80 -7.37940000E+01 1.200000000E+03 5.300000000E+02 0 0
81 -7.37940000E+01 1.257150000E+03 5.300000000E+02 0 0
82 -7.37940000E+01 1.314300000E+03 5.300000000E+02 0 0
83 -7.37940000E+01 1.371450000E+03 5.300000000E+02 0 0
84 -7.37940000E+01 1.428600000E+03 5.300000000E+02 0 0
85 -7.37940000E+01 1.485750000E+03 5.300000000E+02 0 0
135 -7.37940000E+01 1.200000000E+03 4.373330000E+02 0 0
136 -7.37940000E+01 1.200000000E+03 4.836670000E+02 0 0
137 -7.37940000E+01 1.257150000E+03 4.373330000E+02 0 0
138 -7.37940000E+01 1.257150000E+03 4.836670000E+02 0 0
139 -7.37940000E+01 1.314300000E+03 4.373330000E+02 0 0
140 -7.37940000E+01 1.314300000E+03 4.836670000E+02 0 0
141 -7.37940000E+01 1.371450000E+03 4.373330000E+02 0 0
142 -7.37940000E+01 1.371450000E+03 4.836670000E+02 0 0
143 -7.37940000E+01 1.428600000E+03 4.373330000E+02 0 0
144 -7.37940000E+01 1.428600000E+03 4.836670000E+02 0 0
145 -7.37940000E+01 1.485750000E+03 4.373330000E+02 0 0
146 -7.37940000E+01 1.485750000E+03 4.836670000E+02 0 0
163 -6.87942000E+01 1.247940000E+03 0.000000000E+00 0 0
164 -6.87942000E+01 1.247940000E+03 3.250000000E+01 0 0
165 -6.87942000E+01 1.247940000E+03 6.500000000E+01 0 0
166 -6.87942000E+01 1.280440000E+03 0.000000000E+00 0 0
167 -6.87938000E+01 1.282280000E+03 3.434310000E+01 0 0
168 -6.87936000E+01 1.284120000E+03 6.868630000E+01 0 0
169 -6.87941000E+01 1.312940000E+03 0.000000000E+00 0 0
170 -6.87937000E+01 1.316620000E+03 3.618630000E+01 0 0
171 -6.87931000E+01 1.320310000E+03 7.237260000E+01 0 0
172 -3.37939000E+01 1.247940000E+03 0.000000000E+00 0 0
173 -3.37939000E+01 1.247940000E+03 3.250000000E+01 0 0
174 -3.37939000E+01 1.247940000E+03 6.500000000E+01 0 0
175 -3.37939000E+01 1.280440000E+03 0.000000000E+00 0 0
176 -3.37936000E+01 1.282280000E+03 3.434310000E+01 0 0
177 -3.37934000E+01 1.284120000E+03 6.868630000E+01 0 0
178 -3.37938000E+01 1.312940000E+03 0.000000000E+00 0 0
179 -3.37934000E+01 1.316620000E+03 3.618630000E+01 0 0
180 -3.37928000E+01 1.320310000E+03 7.237260000E+01 0 0
181 1.206410000E+00 1.247940000E+03 0.000000000E+00 0 0
182 1.206410000E+00 1.247940000E+03 3.250000000E+01 0 0
183 1.206410000E+00 1.247940000E+03 6.500000000E+01 0 0
184 1.206440000E+00 1.280440000E+03 0.000000000E+00 0 0
185 1.206700000E+00 1.282280000E+03 3.434310000E+01 0 0
186 1.206950000E+00 1.284120000E+03 6.868630000E+01 0 0
187 1.206490000E+00 1.312940000E+03 0.000000000E+00 0 0
188 1.206940000E+00 1.316620000E+03 3.618630000E+01 0 0
189 1.205650000E+00 1.320310000E+03 7.237260000E+01 0 0
190 -6.87942000E+01 1.247940000E+03 9.000000000E+01 0 0
191 -6.87942000E+01 1.247940000E+03 1.150000000E+02 0 0
192 -6.87942000E+01 1.247940000E+03 1.400000000E+02 0 0
193 -6.87936000E+01 1.279980000E+03 8.835870000E+01 0 0
194 -6.87936000E+01 1.279980000E+03 1.091410000E+02 0 0
195 -6.87936000E+01 1.284120000E+03 1.288140000E+02 0 0
196 -6.87930000E+01 1.312020000E+03 8.671750000E+01 0 0
197 -6.87930000E+01 1.312020000E+03 1.032830000E+02 0 0
198 -6.87931000E+01 1.320310000E+03 1.176270000E+02 0 0
199 -3.37939000E+01 1.247940000E+03 9.000000000E+01 0 0
200 -3.37939000E+01 1.247940000E+03 1.150000000E+02 0 0
201 -3.37939000E+01 1.247940000E+03 1.400000000E+02 0 0
202 -3.37933000E+01 1.279980000E+03 8.835870000E+01 0 0
203 -3.37933000E+01 1.279980000E+03 1.091410000E+02 0 0
204 -3.37934000E+01 1.284120000E+03 1.288140000E+02 0 0
205 -3.37927000E+01 1.312020000E+03 8.671750000E+01 0 0
206 -3.37927000E+01 1.312020000E+03 1.032830000E+02 0 0
207 -3.37928000E+01 1.320310000E+03 1.176270000E+02 0 0
208 1.206410000E+00 1.247940000E+03 9.000000000E+01 0 0
209 1.206410000E+00 1.247940000E+03 1.150000000E+02 0 0
210 1.206410000E+00 1.247940000E+03 1.400000000E+02 0 0
211 1.207010000E+00 1.279980000E+03 8.835870000E+01 0 0
212 1.207010000E+00 1.279980000E+03 1.091410000E+02 0 0
213 1.206950000E+00 1.284120000E+03 1.288140000E+02 0 0
214 1.205760000E+00 1.312030000E+03 8.671750000E+01 0 0
215 1.205760000E+00 1.312030000E+03 1.032830000E+02 0 0
216 1.205650000E+00 1.320310000E+03 1.176270000E+02 0 0
217 -6.87942000E+01 1.247940000E+03 1.650000000E+02 0 0
218 -6.87942000E+01 1.247940000E+03 1.900000000E+02 0 0
219 -6.87938000E+01 1.281860000E+03 1.594070000E+02 0 0
220 -6.87939000E+01 1.279610000E+03 1.900000000E+02 0 0
221 -6.87934000E+01 1.315790000E+03 1.538140000E+02 0 0
222 -6.87936000E+01 1.311270000E+03 1.900000000E+02 0 0
223 -3.37939000E+01 1.247940000E+03 1.650000000E+02 0 0
224 -3.37939000E+01 1.247940000E+03 1.900000000E+02 0 0
225 -3.37935000E+01 1.281860000E+03 1.594070000E+02 0 0
226 -3.37937000E+01 1.279600000E+03 1.900000000E+02 0 0
227 -3.37932000E+01 1.315790000E+03 1.538140000E+02 0 0
228 -3.37934000E+01 1.311270000E+03 1.900000000E+02 0 0
229 1.206410000E+00 1.247940000E+03 1.650000000E+02 0 0
230 1.206410000E+00 1.247940000E+03 1.900000000E+02 0 0
231 1.206790000E+00 1.281860000E+03 1.594070000E+02 0 0
232 1.206630000E+00 1.279600000E+03 1.900000000E+02 0 0
233 1.207140000E+00 1.315790000E+03 1.538140000E+02 0 0
234 1.206880000E+00 1.311270000E+03 1.900000000E+02 0 0
235 -6.87942000E+01 1.247940000E+03 2.526670000E+02 0 0
236 -6.87942000E+01 1.247940000E+03 3.153330000E+02 0 0
237 -6.87942000E+01 1.247940000E+03 3.780000000E+02 0 0
238 -6.87939000E+01 1.279610000E+03 2.526670000E+02 0 0
239 -6.87939000E+01 1.279610000E+03 3.153330000E+02 0 0
240 -6.87939000E+01 1.279610000E+03 3.780000000E+02 0 0
241 -6.87936000E+01 1.311270000E+03 2.526670000E+02 0 0
242 -6.87936000E+01 1.311270000E+03 3.153330000E+02 0 0
243 -6.87936000E+01 1.311270000E+03 3.780000000E+02 0 0
244 -3.37939000E+01 1.247940000E+03 2.526670000E+02 0 0
245 -3.37939000E+01 1.247940000E+03 3.153330000E+02 0 0
246 -3.37939000E+01 1.247940000E+03 3.780000000E+02 0 0
247 -3.37937000E+01 1.279600000E+03 2.526670000E+02 0 0
248 -3.37937000E+01 1.279600000E+03 3.153330000E+02 0 0
249 -3.37937000E+01 1.279600000E+03 3.780000000E+02 0 0
250 -3.37934000E+01 1.311270000E+03 2.526670000E+02 0 0
251 -3.37934000E+01 1.311270000E+03 3.153330000E+02 0 0
252 -3.37934000E+01 1.311270000E+03 3.780000000E+02 0 0
253 1.206410000E+00 1.247940000E+03 2.526670000E+02 0 0
254 1.206410000E+00 1.247940000E+03 3.153330000E+02 0 0
255 1.206410000E+00 1.247940000E+03 3.780000000E+02 0 0
256 1.206630000E+00 1.279600000E+03 2.526670000E+02 0 0
257 1.206630000E+00 1.279600000E+03 3.153330000E+02 0 0
258 1.206630000E+00 1.279600000E+03 3.780000000E+02 0 0
259 1.206880000E+00 1.311270000E+03 2.526670000E+02 0 0
260 1.206880000E+00 1.311270000E+03 3.153330000E+02 0 0
261 1.206880000E+00 1.311270000E+03 3.780000000E+02 0 0
262 -6.87942000E+01 1.247940000E+03 4.380000000E+02 0 0
263 -6.87942000E+01 1.247940000E+03 4.980000000E+02 0 0
264 -6.87939000E+01 1.279610000E+03 4.380000000E+02 0 0
265 -6.87939000E+01 1.279610000E+03 4.980000000E+02 0 0
266 -6.87936000E+01 1.311270000E+03 4.380000000E+02 0 0
267 -6.87936000E+01 1.311270000E+03 4.980000000E+02 0 0
268 -3.37939000E+01 1.247940000E+03 4.380000000E+02 0 0
269 -3.37939000E+01 1.247940000E+03 4.980000000E+02 0 0
270 -3.37937000E+01 1.279600000E+03 4.380000000E+02 0 0
271 -3.37937000E+01 1.279600000E+03 4.980000000E+02 0 0
272 -3.37934000E+01 1.311270000E+03 4.380000000E+02 0 0
273 -3.37934000E+01 1.311270000E+03 4.980000000E+02 0 0
274 1.206410000E+00 1.247940000E+03 4.380000000E+02 0 0
275 1.206410000E+00 1.247940000E+03 4.980000000E+02 0 0
276 1.206630000E+00 1.279600000E+03 4.380000000E+02 0 0
277 1.206630000E+00 1.279600000E+03 4.980000000E+02 0 0
278 1.206880000E+00 1.311270000E+03 4.380000000E+02 0 0
279 1.206880000E+00 1.311270000E+03 4.980000000E+02 0 0
280 -6.87942000E+01 1.247940000E+03 5.680000000E+02 0 0
281 -6.87939000E+01 1.279610000E+03 5.680000000E+02 0 0
282 -6.87936000E+01 1.311270000E+03 5.680000000E+02 0 0
283 -3.37939000E+01 1.247940000E+03 5.680000000E+02 0 0
284 -3.37937000E+01 1.279600000E+03 5.680000000E+02 0 0
285 -3.37934000E+01 1.311270000E+03 5.680000000E+02 0 0
286 1.206410000E+00 1.247940000E+03 5.680000000E+02 0 0
287 1.206630000E+00 1.279600000E+03 5.680000000E+02 0 0
288 1.206880000E+00 1.311270000E+03 5.680000000E+02 0 0
289 -6.87942000E+01 1.247940000E+03 6.280000000E+02 0 0
290 -6.87942000E+01 1.247940000E+03 7.030000000E+02 0 0
291 -6.87939000E+01 1.279610000E+03 6.280000000E+02 0 0
292 -6.87939000E+01 1.279610000E+03 7.030000000E+02 0 0
293 -6.87936000E+01 1.311270000E+03 6.280000000E+02 0 0
294 -6.87936000E+01 1.311270000E+03 7.030000000E+02 0 0
295 -3.37939000E+01 1.247940000E+03 6.280000000E+02 0 0
296 -3.37939000E+01 1.247940000E+03 7.030000000E+02 0 0
297 -3.37937000E+01 1.279600000E+03 6.280000000E+02 0 0
298 -3.37937000E+01 1.279600000E+03 7.030000000E+02 0 0
299 -3.37934000E+01 1.311270000E+03 6.280000000E+02 0 0
300 -3.37934000E+01 1.311270000E+03 7.030000000E+02 0 0
301 1.206410000E+00 1.247940000E+03 6.280000000E+02 0 0
302 1.206410000E+00 1.247940000E+03 7.030000000E+02 0 0
303 1.206630000E+00 1.279600000E+03 6.280000000E+02 0 0
304 1.206630000E+00 1.279600000E+03 7.030000000E+02 0 0
305 1.206880000E+00 1.311270000E+03 6.280000000E+02 0 0
306 1.206880000E+00 1.311270000E+03 7.030000000E+02 0 0
307 -6.87936000E+01 1.342940000E+03 0.000000000E+00 0 0
308 -6.87936000E+01 1.342940000E+03 3.150000000E+01 0 0
309 -6.87936000E+01 1.342940000E+03 6.300000000E+01 0 0
310 -6.87930000E+01 1.372930000E+03 0.000000000E+00 0 0
311 -6.87934000E+01 1.369250000E+03 3.618630000E+01 0 0
312 -6.87940000E+01 1.365570000E+03 7.237260000E+01 0 0
313 -3.37932000E+01 1.342930000E+03 0.000000000E+00 0 0
314 -3.37932000E+01 1.342930000E+03 3.150000000E+01 0 0
315 -3.37932000E+01 1.342930000E+03 6.300000000E+01 0 0
316 -3.37945000E+01 1.372940000E+03 0.000000000E+00 0 0
317 -3.37931000E+01 1.369250000E+03 3.618630000E+01 0 0
318 -3.37937000E+01 1.365560000E+03 7.237260000E+01 0 0
319 1.207110000E+00 1.342930000E+03 0.000000000E+00 0 0
320 1.207110000E+00 1.342930000E+03 3.150000000E+01 0 0
321 1.207110000E+00 1.342930000E+03 6.300000000E+01 0 0
322 1.205790000E+00 1.372940000E+03 0.000000000E+00 0 0
323 1.207180000E+00 1.369250000E+03 3.618630000E+01 0 0
324 1.206630000E+00 1.365560000E+03 7.237260000E+01 0 0
325 -6.87936000E+01 1.342940000E+03 1.270000000E+02 0 0
326 -6.87936000E+01 1.342940000E+03 1.585000000E+02 0 0
327 -6.87936000E+01 1.342940000E+03 1.900000000E+02 0 0
328 -6.87940000E+01 1.365570000E+03 1.176270000E+02 0 0
329 -6.87936000E+01 1.370080000E+03 1.538140000E+02 0 0
330 -6.87934000E+01 1.374600000E+03 1.900000000E+02 0 0
331 -3.37932000E+01 1.342930000E+03 1.270000000E+02 0 0
332 -3.37932000E+01 1.342930000E+03 1.585000000E+02 0 0
333 -3.37932000E+01 1.342930000E+03 1.900000000E+02 0 0
334 -3.37937000E+01 1.365560000E+03 1.176270000E+02 0 0
335 -3.37933000E+01 1.370080000E+03 1.538140000E+02 0 0
336 -3.37931000E+01 1.374600000E+03 1.900000000E+02 0 0
337 1.207110000E+00 1.342930000E+03 1.270000000E+02 0 0
338 1.207110000E+00 1.342930000E+03 1.585000000E+02 0 0
339 1.207110000E+00 1.342930000E+03 1.900000000E+02 0 0
340 1.206630000E+00 1.365560000E+03 1.176270000E+02 0 0
341 1.206980000E+00 1.370080000E+03 1.538140000E+02 0 0
342 1.207250000E+00 1.374600000E+03 1.900000000E+02 0 0
343 -6.87936000E+01 1.342940000E+03 2.526670000E+02 0 0
344 -6.87936000E+01 1.342940000E+03 3.153330000E+02 0 0
345 -6.87936000E+01 1.342940000E+03 3.780000000E+02 0 0
346 -6.87934000E+01 1.374600000E+03 2.526670000E+02 0 0
347 -6.87934000E+01 1.374600000E+03 3.153330000E+02 0 0
348 -6.87934000E+01 1.374600000E+03 3.780000000E+02 0 0
349 -3.37932000E+01 1.342930000E+03 2.526670000E+02 0 0
350 -3.37932000E+01 1.342930000E+03 3.153330000E+02 0 0
351 -3.37932000E+01 1.342930000E+03 3.780000000E+02 0 0
352 -3.37931000E+01 1.374600000E+03 2.526670000E+02 0 0
353 -3.37931000E+01 1.374600000E+03 3.153330000E+02 0 0
354 -3.37931000E+01 1.374600000E+03 3.780000000E+02 0 0
355 1.207110000E+00 1.342930000E+03 2.526670000E+02 0 0
356 1.207110000E+00 1.342930000E+03 3.153330000E+02 0 0
357 1.207110000E+00 1.342930000E+03 3.780000000E+02 0 0
358 1.207250000E+00 1.374600000E+03 2.526670000E+02 0 0
359 1.207250000E+00 1.374600000E+03 3.153330000E+02 0 0
360 1.207250000E+00 1.374600000E+03 3.780000000E+02 0 0
361 -6.87936000E+01 1.342940000E+03 4.380000000E+02 0 0
362 -6.87936000E+01 1.342940000E+03 4.980000000E+02 0 0
363 -6.87934000E+01 1.374600000E+03 4.380000000E+02 0 0
364 -6.87934000E+01 1.374600000E+03 4.980000000E+02 0 0
365 -3.37932000E+01 1.342930000E+03 4.380000000E+02 0 0
366 -3.37932000E+01 1.342930000E+03 4.980000000E+02 0 0
367 -3.37931000E+01 1.374600000E+03 4.380000000E+02 0 0
368 -3.37931000E+01 1.374600000E+03 4.980000000E+02 0 0
369 1.207110000E+00 1.342930000E+03 4.380000000E+02 0 0
370 1.207110000E+00 1.342930000E+03 4.980000000E+02 0 0
371 1.207250000E+00 1.374600000E+03 4.380000000E+02 0 0
372 1.207250000E+00 1.374600000E+03 4.980000000E+02 0 0
373 -6.87936000E+01 1.342940000E+03 5.680000000E+02 0 0
374 -6.87934000E+01 1.374600000E+03 5.680000000E+02 0 0
375 -3.37932000E+01 1.342930000E+03 5.680000000E+02 0 0
376 -3.37931000E+01 1.374600000E+03 5.680000000E+02 0 0
377 1.207110000E+00 1.342930000E+03 5.680000000E+02 0 0
378 1.207250000E+00 1.374600000E+03 5.680000000E+02 0 0
379 -6.87936000E+01 1.342940000E+03 6.280000000E+02 0 0
380 -6.87936000E+01 1.342940000E+03 7.030000000E+02 0 0
381 -6.87934000E+01 1.374600000E+03 6.280000000E+02 0 0
382 -6.87934000E+01 1.374600000E+03 7.030000000E+02 0 0
383 -3.37932000E+01 1.342930000E+03 6.280000000E+02 0 0
384 -3.37932000E+01 1.342930000E+03 7.030000000E+02 0 0
385 -3.37931000E+01 1.374600000E+03 6.280000000E+02 0 0
386 -3.37931000E+01 1.374600000E+03 7.030000000E+02 0 0
387 1.207110000E+00 1.342930000E+03 6.280000000E+02 0 0
388 1.207110000E+00 1.342930000E+03 7.030000000E+02 0 0
389 1.207250000E+00 1.374600000E+03 6.280000000E+02 0 0
390 1.207250000E+00 1.374600000E+03 7.030000000E+02 0 0
391 -6.87929000E+01 1.405430000E+03 0.000000000E+00 0 0
392 -6.87932000E+01 1.403590000E+03 3.434310000E+01 0 0
393 -6.87935000E+01 1.401750000E+03 6.868630000E+01 0 0
394 -6.87929000E+01 1.437930000E+03 0.000000000E+00 0 0
395 -6.87929000E+01 1.437930000E+03 3.250000000E+01 0 0
396 -6.87929000E+01 1.437930000E+03 6.500000000E+01 0 0
397 -3.37945000E+01 1.405440000E+03 0.000000000E+00 0 0
398 -3.37929000E+01 1.403590000E+03 3.434310000E+01 0 0
399 -3.37931000E+01 1.401750000E+03 6.868630000E+01 0 0
400 -3.37944000E+01 1.437940000E+03 0.000000000E+00 0 0
401 -3.37944000E+01 1.437940000E+03 3.250000000E+01 0 0
402 -3.37944000E+01 1.437940000E+03 6.500000000E+01 0 0
403 1.205830000E+00 1.405440000E+03 0.000000000E+00 0 0
404 1.205600000E+00 1.403600000E+03 3.434310000E+01 0 0
405 1.207220000E+00 1.401750000E+03 6.868630000E+01 0 0
406 1.205860000E+00 1.437940000E+03 0.000000000E+00 0 0
407 1.205860000E+00 1.437940000E+03 3.250000000E+01 0 0
408 1.205860000E+00 1.437940000E+03 6.500000000E+01 0 0
409 -6.87941000E+01 1.373850000E+03 8.671750000E+01 0 0
410 -6.87941000E+01 1.373850000E+03 1.032830000E+02 0 0
411 -6.87934000E+01 1.405890000E+03 8.835870000E+01 0 0
412 -6.87934000E+01 1.405890000E+03 1.091410000E+02 0 0
413 -6.87935000E+01 1.401750000E+03 1.288140000E+02 0 0
414 -6.87929000E+01 1.437930000E+03 9.000000000E+01 0 0
415 -6.87929000E+01 1.437930000E+03 1.150000000E+02 0 0
416 -6.87929000E+01 1.437930000E+03 1.400000000E+02 0 0
417 -3.37938000E+01 1.373850000E+03 8.671750000E+01 0 0
418 -3.37938000E+01 1.373850000E+03 1.032830000E+02 0 0
419 -3.37932000E+01 1.405890000E+03 8.835870000E+01 0 0
420 -3.37932000E+01 1.405890000E+03 1.091410000E+02 0 0
421 -3.37931000E+01 1.401750000E+03 1.288140000E+02 0 0
422 -3.37944000E+01 1.437940000E+03 9.000000000E+01 0 0
423 -3.37944000E+01 1.437940000E+03 1.150000000E+02 0 0
424 -3.37944000E+01 1.437940000E+03 1.400000000E+02 0 0
425 1.206510000E+00 1.373850000E+03 8.671750000E+01 0 0
426 1.206510000E+00 1.373850000E+03 1.032830000E+02 0 0
427 1.207160000E+00 1.405890000E+03 8.835870000E+01 0 0
428 1.207160000E+00 1.405890000E+03 1.091410000E+02 0 0
429 1.207220000E+00 1.401750000E+03 1.288140000E+02 0 0
430 1.205860000E+00 1.437940000E+03 9.000000000E+01 0 0
431 1.205860000E+00 1.437940000E+03 1.150000000E+02 0 0
432 1.205860000E+00 1.437940000E+03 1.400000000E+02 0 0
433 -6.87933000E+01 1.404010000E+03 1.594070000E+02 0 0
434 -6.87931000E+01 1.406270000E+03 1.900000000E+02 0 0
435 -6.87929000E+01 1.437930000E+03 1.650000000E+02 0 0
436 -6.87929000E+01 1.437930000E+03 1.900000000E+02 0 0
437 -3.37930000E+01 1.404010000E+03 1.594070000E+02 0 0
438 -3.37928000E+01 1.406270000E+03 1.900000000E+02 0 0
439 -3.37944000E+01 1.437940000E+03 1.650000000E+02 0 0
440 -3.37944000E+01 1.437940000E+03 1.900000000E+02 0 0
441 1.205500000E+00 1.404020000E+03 1.594070000E+02 0 0
442 1.205630000E+00 1.406270000E+03 1.900000000E+02 0 0
443 1.205860000E+00 1.437940000E+03 1.650000000E+02 0 0
444 1.205860000E+00 1.437940000E+03 1.900000000E+02 0 0
445 -6.87931000E+01 1.406270000E+03 2.526670000E+02 0 0
446 -6.87931000E+01 1.406270000E+03 3.153330000E+02 0 0
447 -6.87931000E+01 1.406270000E+03 3.780000000E+02 0 0
448 -6.87929000E+01 1.437930000E+03 2.526670000E+02 0 0
449 -6.87929000E+01 1.437930000E+03 3.153330000E+02 0 0
450 -6.87929000E+01 1.437930000E+03 3.780000000E+02 0 0
451 -3.37928000E+01 1.406270000E+03 2.526670000E+02 0 0
452 -3.37928000E+01 1.406270000E+03 3.153330000E+02 0 0
453 -3.37928000E+01 1.406270000E+03 3.780000000E+02 0 0
454 -3.37944000E+01 1.437940000E+03 2.526670000E+02 0 0
455 -3.37944000E+01 1.437940000E+03 3.153330000E+02 0 0
456 -3.37944000E+01 1.437940000E+03 3.780000000E+02 0 0
457 1.205630000E+00 1.406270000E+03 2.526670000E+02 0 0
458 1.205630000E+00 1.406270000E+03 3.153330000E+02 0 0
459 1.205630000E+00 1.406270000E+03 3.780000000E+02 0 0
460 1.205860000E+00 1.437940000E+03 2.526670000E+02 0 0
461 1.205860000E+00 1.437940000E+03 3.153330000E+02 0 0
462 1.205860000E+00 1.437940000E+03 3.780000000E+02 0 0
463 -6.87931000E+01 1.406270000E+03 4.380000000E+02 0 0
464 -6.87931000E+01 1.406270000E+03 4.980000000E+02 0 0
465 -6.87929000E+01 1.437930000E+03 4.380000000E+02 0 0
466 -6.87929000E+01 1.437930000E+03 4.980000000E+02 0 0
467 -3.37928000E+01 1.406270000E+03 4.380000000E+02 0 0
468 -3.37928000E+01 1.406270000E+03 4.980000000E+02 0 0
469 -3.37944000E+01 1.437940000E+03 4.380000000E+02 0 0
470 -3.37944000E+01 1.437940000E+03 4.980000000E+02 0 0
471 1.205630000E+00 1.406270000E+03 4.380000000E+02 0 0
472 1.205630000E+00 1.406270000E+03 4.980000000E+02 0 0
473 1.205860000E+00 1.437940000E+03 4.380000000E+02 0 0
474 1.205860000E+00 1.437940000E+03 4.980000000E+02 0 0
475 -6.87931000E+01 1.406270000E+03 5.680000000E+02 0 0
476 -6.87929000E+01 1.437930000E+03 5.680000000E+02 0 0
477 -3.37928000E+01 1.406270000E+03 5.680000000E+02 0 0
478 -3.37944000E+01 1.437940000E+03 5.680000000E+02 0 0
479 1.205630000E+00 1.406270000E+03 5.680000000E+02 0 0
480 1.205860000E+00 1.437940000E+03 5.680000000E+02 0 0
481 -6.87931000E+01 1.406270000E+03 6.280000000E+02 0 0
482 -6.87931000E+01 1.406270000E+03 7.030000000E+02 0 0
483 -6.87929000E+01 1.437930000E+03 6.280000000E+02 0 0
484 -6.87929000E+01 1.437930000E+03 7.030000000E+02 0 0
485 -3.37928000E+01 1.406270000E+03 6.280000000E+02 0 0
486 -3.37928000E+01 1.406270000E+03 7.030000000E+02 0 0
487 -3.37944000E+01 1.437940000E+03 6.280000000E+02 0 0
488 -3.37944000E+01 1.437940000E+03 7.030000000E+02 0 0
489 1.205630000E+00 1.406270000E+03 6.280000000E+02 0 0
490 1.205630000E+00 1.406270000E+03 7.030000000E+02 0 0
491 1.205860000E+00 1.437940000E+03 6.280000000E+02 0 0
492 1.205860000E+00 1.437940000E+03 7.030000000E+02 0 0
493 3.620670000E+01 1.247940000E+03 0.000000000E+00 0 0
494 3.620670000E+01 1.247940000E+03 3.250000000E+01 0 0
495 3.620670000E+01 1.247940000E+03 6.500000000E+01 0 0
496 3.620680000E+01 1.280430000E+03 0.000000000E+00 0 0
497 3.620700000E+01 1.282280000E+03 3.434310000E+01 0 0
498 3.620730000E+01 1.284120000E+03 6.868630000E+01 0 0
499 3.620680000E+01 1.312930000E+03 0.000000000E+00 0 0
500 3.620730000E+01 1.316620000E+03 3.618630000E+01 0 0
501 3.620600000E+01 1.320310000E+03 7.237260000E+01 0 0
511 3.620670000E+01 1.247940000E+03 9.000000000E+01 0 0
512 3.620670000E+01 1.247940000E+03 1.150000000E+02 0 0
513 3.620670000E+01 1.247940000E+03 1.400000000E+02 0 0
514 3.620740000E+01 1.279980000E+03 8.835870000E+01 0 0
515 3.620740000E+01 1.279980000E+03 1.091410000E+02 0 0
516 3.620730000E+01 1.284120000E+03 1.288140000E+02 0 0
517 3.620610000E+01 1.312030000E+03 8.671750000E+01 0 0
518 3.620610000E+01 1.312030000E+03 1.032830000E+02 0 0
519 3.620600000E+01 1.320310000E+03 1.176270000E+02 0 0
529 3.620670000E+01 1.247940000E+03 1.650000000E+02 0 0
530 3.620670000E+01 1.247940000E+03 1.900000000E+02 0 0
531 3.620710000E+01 1.281860000E+03 1.594070000E+02 0 0
532 3.620690000E+01 1.279600000E+03 1.900000000E+02 0 0
533 3.620560000E+01 1.315790000E+03 1.538140000E+02 0 0
534 3.620720000E+01 1.311270000E+03 1.900000000E+02 0 0
541 3.620670000E+01 1.247940000E+03 2.526670000E+02 0 0
542 3.620670000E+01 1.247940000E+03 3.153330000E+02 0 0
543 3.620670000E+01 1.247940000E+03 3.780000000E+02 0 0
544 3.620690000E+01 1.279600000E+03 2.526670000E+02 0 0
545 3.620690000E+01 1.279600000E+03 3.153330000E+02 0 0
546 3.620690000E+01 1.279600000E+03 3.780000000E+02 0 0
547 3.620720000E+01 1.311270000E+03 2.526670000E+02 0 0
548 3.620720000E+01 1.311270000E+03 3.153330000E+02 0 0
549 3.620720000E+01 1.311270000E+03 3.780000000E+02 0 0
559 3.620670000E+01 1.247940000E+03 4.380000000E+02 0 0
560 3.620670000E+01 1.247940000E+03 4.980000000E+02 0 0
561 3.620690000E+01 1.279600000E+03 4.380000000E+02 0 0
562 3.620690000E+01 1.279600000E+03 4.980000000E+02 0 0
563 3.620720000E+01 1.311270000E+03 4.380000000E+02 0 0
564 3.620720000E+01 1.311270000E+03 4.980000000E+02 0 0
571 3.620670000E+01 1.247940000E+03 5.680000000E+02 0 0
572 3.620690000E+01 1.279600000E+03 5.680000000E+02 0 0
573 3.620720000E+01 1.311270000E+03 5.680000000E+02 0 0
577 3.620670000E+01 1.247940000E+03 6.280000000E+02 0 0
578 3.620670000E+01 1.247940000E+03 7.030000000E+02 0 0
579 3.620690000E+01 1.279600000E+03 6.280000000E+02 0 0
580 3.620690000E+01 1.279600000E+03 7.030000000E+02 0 0
581 3.620720000E+01 1.311270000E+03 6.280000000E+02 0 0
582 3.620720000E+01 1.311270000E+03 7.030000000E+02 0 0
589 3.620560000E+01 1.342940000E+03 0.000000000E+00 0 0
590 3.620560000E+01 1.342940000E+03 3.150000000E+01 0 0
591 3.620560000E+01 1.342940000E+03 6.300000000E+01 0 0
592 3.620610000E+01 1.372940000E+03 0.000000000E+00 0 0
593 3.620560000E+01 1.369250000E+03 3.618630000E+01 0 0
594 3.620690000E+01 1.365560000E+03 7.237260000E+01 0 0
601 3.620560000E+01 1.342940000E+03 1.270000000E+02 0 0
602 3.620560000E+01 1.342940000E+03 1.585000000E+02 0 0
603 3.620560000E+01 1.342940000E+03 1.900000000E+02 0 0
604 3.620690000E+01 1.365560000E+03 1.176270000E+02 0 0
605 3.620730000E+01 1.370080000E+03 1.538140000E+02 0 0
606 3.620580000E+01 1.374610000E+03 1.900000000E+02 0 0
613 3.620560000E+01 1.342940000E+03 2.526670000E+02 0 0
614 3.620560000E+01 1.342940000E+03 3.153330000E+02 0 0
615 3.620560000E+01 1.342940000E+03 3.780000000E+02 0 0
616 3.620580000E+01 1.374610000E+03 2.526670000E+02 0 0
617 3.620580000E+01 1.374610000E+03 3.153330000E+02 0 0
618 3.620580000E+01 1.374610000E+03 3.780000000E+02 0 0
625 3.620560000E+01 1.342940000E+03 4.380000000E+02 0 0
626 3.620560000E+01 1.342940000E+03 4.980000000E+02 0 0
627 3.620580000E+01 1.374610000E+03 4.380000000E+02 0 0
628 3.620580000E+01 1.374610000E+03 4.980000000E+02 0 0
633 3.620560000E+01 1.342940000E+03 5.680000000E+02 0 0
634 3.620580000E+01 1.374610000E+03 5.680000000E+02 0 0
637 3.620560000E+01 1.342940000E+03 6.280000000E+02 0 0
638 3.620560000E+01 1.342940000E+03 7.030000000E+02 0 0
639 3.620580000E+01 1.374610000E+03 6.280000000E+02 0 0
640 3.620580000E+01 1.374610000E+03 7.030000000E+02 0 0
645 3.620610000E+01 1.405440000E+03 0.000000000E+00 0 0
646 3.620590000E+01 1.403600000E+03 3.434310000E+01 0 0
647 3.620570000E+01 1.401750000E+03 6.868630000E+01 0 0
648 3.620620000E+01 1.437940000E+03 0.000000000E+00 0 0
649 3.620620000E+01 1.437940000E+03 3.250000000E+01 0 0
650 3.620620000E+01 1.437940000E+03 6.500000000E+01 0 0
657 3.620680000E+01 1.373840000E+03 8.671750000E+01 0 0
658 3.620680000E+01 1.373840000E+03 1.032830000E+02 0 0
659 3.620560000E+01 1.405900000E+03 8.835870000E+01 0 0
660 3.620560000E+01 1.405900000E+03 1.091410000E+02 0 0
661 3.620570000E+01 1.401750000E+03 1.288140000E+02 0 0
662 3.620620000E+01 1.437940000E+03 9.000000000E+01 0 0
663 3.620620000E+01 1.437940000E+03 1.150000000E+02 0 0
664 3.620620000E+01 1.437940000E+03 1.400000000E+02 0 0
673 3.620580000E+01 1.404010000E+03 1.594070000E+02 0 0
674 3.620590000E+01 1.406270000E+03 1.900000000E+02 0 0
675 3.620620000E+01 1.437940000E+03 1.650000000E+02 0 0
676 3.620620000E+01 1.437940000E+03 1.900000000E+02 0 0
681 3.620590000E+01 1.406270000E+03 2.526670000E+02 0 0
682 3.620590000E+01 1.406270000E+03 3.153330000E+02 0 0
683 3.620590000E+01 1.406270000E+03 3.780000000E+02 0 0
684 3.620620000E+01 1.437940000E+03 2.526670000E+02 0 0
685 3.620620000E+01 1.437940000E+03 3.153330000E+02 0 0
686 3.620620000E+01 1.437940000E+03 3.780000000E+02 0 0
693 3.620590000E+01 1.406270000E+03 4.380000000E+02 0 0
694 3.620590000E+01 1.406270000E+03 4.980000000E+02 0 0
695 3.620620000E+01 1.437940000E+03 4.380000000E+02 0 0
696 3.620620000E+01 1.437940000E+03 4.980000000E+02 0 0
701 3.620590000E+01 1.406270000E+03 5.680000000E+02 0 0
702 3.620620000E+01 1.437940000E+03 5.680000000E+02 0 0
705 3.620590000E+01 1.406270000E+03 6.280000000E+02 0 0
706 3.620590000E+01 1.406270000E+03 7.030000000E+02 0 0
707 3.620620000E+01 1.437940000E+03 6.280000000E+02 0 0
708 3.620620000E+01 1.437940000E+03 7.030000000E+02 0 0
713 -7.37940000E+01 1.228570000E+03 3.910000000E+02 0 0
714 -7.37940000E+01 1.200000000E+03 4.141670000E+02 0 0
715 -7.37940000E+01 1.285730000E+03 3.910000000E+02 0 0
716 -7.37940000E+01 1.257150000E+03 4.141670000E+02 0 0
717 -7.37940000E+01 1.342880000E+03 3.910000000E+02 0 0
718 -7.37940000E+01 1.314300000E+03 4.141670000E+02 0 0
719 -7.37940000E+01 1.400030000E+03 3.910000000E+02 0 0
720 -7.37940000E+01 1.371450000E+03 4.141670000E+02 0 0
721 -7.37940000E+01 1.457180000E+03 3.910000000E+02 0 0
722 -7.37940000E+01 1.428600000E+03 4.141670000E+02 0 0
723 -7.37940000E+01 1.485750000E+03 4.141670000E+02 0 0
724 -7.37940000E+01 1.228570000E+03 5.300000000E+02 0 0
725 -7.37940000E+01 1.200000000E+03 5.068340000E+02 0 0
726 -7.37940000E+01 1.285730000E+03 5.300000000E+02 0 0
727 -7.37940000E+01 1.257150000E+03 5.068340000E+02 0 0
728 -7.37940000E+01 1.342880000E+03 5.300000000E+02 0 0
729 -7.37940000E+01 1.314300000E+03 5.068340000E+02 0 0
730 -7.37940000E+01 1.400030000E+03 5.300000000E+02 0 0
731 -7.37940000E+01 1.371450000E+03 5.068340000E+02 0 0
732 -7.37940000E+01 1.457180000E+03 5.300000000E+02 0 0
733 -7.37940000E+01 1.428600000E+03 5.068340000E+02 0 0
734 -7.37940000E+01 1.485750000E+03 5.068340000E+02 0 0
735 -7.37940000E+01 1.200000000E+03 4.605000000E+02 0 0
736 -7.37940000E+01 1.228570000E+03 4.373330000E+02 0 0
737 -7.37940000E+01 1.228570000E+03 4.836670000E+02 0 0
738 -7.37940000E+01 1.257150000E+03 4.605000000E+02 0 0
739 -7.37940000E+01 1.285730000E+03 4.373330000E+02 0 0
740 -7.37940000E+01 1.285730000E+03 4.836670000E+02 0 0
741 -7.37940000E+01 1.314300000E+03 4.605000000E+02 0 0
742 -7.37940000E+01 1.342880000E+03 4.373330000E+02 0 0
743 -7.37940000E+01 1.342880000E+03 4.836670000E+02 0 0
744 -7.37940000E+01 1.371450000E+03 4.605000000E+02 0 0
745 -7.37940000E+01 1.400030000E+03 4.373330000E+02 0 0
746 -7.37940000E+01 1.400030000E+03 4.836670000E+02 0 0
747 -7.37940000E+01 1.428600000E+03 4.605000000E+02 0 0
748 -7.37940000E+01 1.457180000E+03 4.373330000E+02 0 0
749 -7.37940000E+01 1.457180000E+03 4.836670000E+02 0 0
750 -7.37940000E+01 1.485750000E+03 4.605000000E+02 0 0
751 -7.37940000E+01 1.228570000E+03 4.141670000E+02 0 0
752 -7.37940000E+01 1.285730000E+03 4.141670000E+02 0 0
753 -7.37940000E+01 1.342880000E+03 4.141670000E+02 0 0
754 -7.37940000E+01 1.400030000E+03 4.141670000E+02 0 0
755 -7.37940000E+01 1.457180000E+03 4.141670000E+02 0 0
756 -7.37940000E+01 1.228570000E+03 4.605000000E+02 0 0
757 -7.37940000E+01 1.285730000E+03 4.605000000E+02 0 0
758 -7.37940000E+01 1.342880000E+03 4.605000000E+02 0 0
759 -7.37940000E+01 1.400030000E+03 4.605000000E+02 0 0
760 -7.37940000E+01 1.457180000E+03 4.605000000E+02 0 0
761 -7.37940000E+01 1.228570000E+03 5.068340000E+02 0 0
762 -7.37940000E+01 1.285730000E+03 5.068340000E+02 0 0
763 -7.37940000E+01 1.342880000E+03 5.068340000E+02 0 0
764 -7.37940000E+01 1.400030000E+03 5.068340000E+02 0 0
765 -7.37940000E+01 1.457180000E+03 5.068340000E+02 0 0
$
$$$$$$$$$ Solid Elements
$
*ELEMENT_SOLID
$ eid pid n1 n2 n3 n4 n5 n6 n7 n8
1 4 163 172 175 166 164 173 176 167
2 4 172 181 184 175 173 182 185 176
3 4 166 175 178 169 167 176 179 170
4 4 175 184 187 178 176 185 188 179
5 4 164 173 176 167 165 174 177 168
6 4 173 182 185 176 174 183 186 177
7 4 167 176 179 170 168 177 180 171
8 4 176 185 188 179 177 186 189 180
9 4 165 174 177 168 190 199 202 193
10 4 174 183 186 177 199 208 211 202
11 4 168 177 180 171 193 202 205 196
12 4 177 186 189 180 202 211 214 205
13 4 190 199 202 193 191 200 203 194
14 4 199 208 211 202 200 209 212 203
15 4 193 202 205 196 194 203 206 197
16 4 202 211 214 205 203 212 215 206
17 4 191 200 203 194 192 201 204 195
18 4 200 209 212 203 201 210 213 204
19 4 194 203 206 197 195 204 207 198
20 4 203 212 215 206 204 213 216 207
21 4 192 201 204 195 217 223 225 219
22 4 201 210 213 204 223 229 231 225
23 4 195 204 207 198 219 225 227 221
24 4 204 213 216 207 225 231 233 227
25 4 217 223 225 219 218 224 226 220
26 4 223 229 231 225 224 230 232 226
27 4 219 225 227 221 220 226 228 222
28 4 225 231 233 227 226 232 234 228
29 4 169 178 313 307 170 179 314 308
30 4 178 187 319 313 179 188 320 314
31 4 307 313 316 310 308 314 317 311
32 4 313 319 322 316 314 320 323 317
33 4 170 179 314 308 171 180 315 309
34 4 179 188 320 314 180 189 321 315
35 4 308 314 317 311 309 315 318 312
36 4 314 320 323 317 315 321 324 318
37 4 198 207 331 325 221 227 332 326
38 4 207 216 337 331 227 233 338 332
39 4 325 331 334 328 326 332 335 329
40 4 331 337 340 334 332 338 341 335
41 4 221 227 332 326 222 228 333 327
42 4 227 233 338 332 228 234 339 333
43 4 326 332 335 329 327 333 336 330
44 4 332 338 341 335 333 339 342 336
45 4 310 316 397 391 311 317 398 392
46 4 316 322 403 397 317 323 404 398
47 4 391 397 400 394 392 398 401 395
48 4 397 403 406 400 398 404 407 401
49 4 311 317 398 392 312 318 399 393
50 4 317 323 404 398 318 324 405 399
51 4 392 398 401 395 393 399 402 396
52 4 398 404 407 401 399 405 408 402
53 4 312 318 399 393 409 417 419 411
54 4 318 324 405 399 417 425 427 419
55 4 393 399 402 396 411 419 422 414
56 4 399 405 408 402 419 427 430 422
57 4 409 417 419 411 410 418 420 412
58 4 417 425 427 419 418 426 428 420
59 4 411 419 422 414 412 420 423 415
60 4 419 427 430 422 420 428 431 423
61 4 410 418 420 412 328 334 421 413
62 4 418 426 428 420 334 340 429 421
63 4 412 420 423 415 413 421 424 416
64 4 420 428 431 423 421 429 432 424
65 4 328 334 421 413 329 335 437 433
66 4 334 340 429 421 335 341 441 437
67 4 413 421 424 416 433 437 439 435
68 4 421 429 432 424 437 441 443 439
69 4 329 335 437 433 330 336 438 434
70 4 335 341 441 437 336 342 442 438
71 4 433 437 439 435 434 438 440 436
72 4 437 441 443 439 438 442 444 440
73 4 181 493 496 184 182 494 497 185
75 4 184 496 499 187 185 497 500 188
77 4 182 494 497 185 183 495 498 186
79 4 185 497 500 188 186 498 501 189
81 4 183 495 498 186 208 511 514 211
83 4 186 498 501 189 211 514 517 214
85 4 208 511 514 211 209 512 515 212
87 4 211 514 517 214 212 515 518 215
89 4 209 512 515 212 210 513 516 213
91 4 212 515 518 215 213 516 519 216
93 4 210 513 516 213 229 529 531 231
95 4 213 516 519 216 231 531 533 233
97 4 229 529 531 231 230 530 532 232
99 4 231 531 533 233 232 532 534 234
101 4 187 499 589 319 188 500 590 320
103 4 319 589 592 322 320 590 593 323
105 4 188 500 590 320 189 501 591 321
107 4 320 590 593 323 321 591 594 324
109 4 216 519 601 337 233 533 602 338
111 4 337 601 604 340 338 602 605 341
113 4 233 533 602 338 234 534 603 339
115 4 338 602 605 341 339 603 606 342
117 4 322 592 645 403 323 593 646 404
119 4 403 645 648 406 404 646 649 407
121 4 323 593 646 404 324 594 647 405
123 4 404 646 649 407 405 647 650 408
125 4 324 594 647 405 425 657 659 427
127 4 405 647 650 408 427 659 662 430
129 4 425 657 659 427 426 658 660 428
131 4 427 659 662 430 428 660 663 431
133 4 426 658 660 428 340 604 661 429
135 4 428 660 663 431 429 661 664 432
137 4 340 604 661 429 341 605 673 441
139 4 429 661 664 432 441 673 675 443
141 4 341 605 673 441 342 606 674 442
143 4 441 673 675 443 442 674 676 444
145 5 218 224 226 220 235 244 247 238
146 5 224 230 232 226 244 253 256 247
147 5 220 226 228 222 238 247 250 241
148 5 226 232 234 228 247 256 259 250
149 5 235 244 247 238 236 245 248 239
150 5 244 253 256 247 245 254 257 248
151 5 238 247 250 241 239 248 251 242
152 5 247 256 259 250 248 257 260 251
153 5 236 245 248 239 237 246 249 240
154 5 245 254 257 248 246 255 258 249
155 5 239 248 251 242 240 249 252 243
156 5 248 257 260 251 249 258 261 252
157 5 237 246 249 240 262 268 270 264
158 5 246 255 258 249 268 274 276 270
159 5 240 249 252 243 264 270 272 266
160 5 249 258 261 252 270 276 278 272
161 5 262 268 270 264 263 269 271 265
162 5 268 274 276 270 269 275 277 271
163 5 264 270 272 266 265 271 273 267
164 5 270 276 278 272 271 277 279 273
165 5 263 269 271 265 280 283 284 281
166 5 269 275 277 271 283 286 287 284
167 5 265 271 273 267 281 284 285 282
168 5 271 277 279 273 284 287 288 285
169 5 280 283 284 281 289 295 297 291
170 5 283 286 287 284 295 301 303 297
171 5 281 284 285 282 291 297 299 293
172 5 284 287 288 285 297 303 305 299
173 5 289 295 297 291 290 296 298 292
174 5 295 301 303 297 296 302 304 298
175 5 291 297 299 293 292 298 300 294
176 5 297 303 305 299 298 304 306 300
177 5 222 228 333 327 241 250 349 343
178 5 228 234 339 333 250 259 355 349
179 5 327 333 336 330 343 349 352 346
180 5 333 339 342 336 349 355 358 352
181 5 241 250 349 343 242 251 350 344
182 5 250 259 355 349 251 260 356 350
183 5 343 349 352 346 344 350 353 347
184 5 349 355 358 352 350 356 359 353
185 5 242 251 350 344 243 252 351 345
186 5 251 260 356 350 252 261 357 351
187 5 344 350 353 347 345 351 354 348
188 5 350 356 359 353 351 357 360 354
189 5 243 252 351 345 266 272 365 361
190 5 252 261 357 351 272 278 369 365
191 5 345 351 354 348 361 365 367 363
192 5 351 357 360 354 365 369 371 367
193 5 266 272 365 361 267 273 366 362
194 5 272 278 369 365 273 279 370 366
195 5 361 365 367 363 362 366 368 364
196 5 365 369 371 367 366 370 372 368
197 5 267 273 366 362 282 285 375 373
198 5 273 279 370 366 285 288 377 375
199 5 362 366 368 364 373 375 376 374
200 5 366 370 372 368 375 377 378 376
201 5 282 285 375 373 293 299 383 379
202 5 285 288 377 375 299 305 387 383
203 5 373 375 376 374 379 383 385 381
204 5 375 377 378 376 383 387 389 385
205 5 293 299 383 379 294 300 384 380
206 5 299 305 387 383 300 306 388 384
207 5 379 383 385 381 380 384 386 382
208 5 383 387 389 385 384 388 390 386
209 5 330 336 438 434 346 352 451 445
210 5 336 342 442 438 352 358 457 451
211 5 434 438 440 436 445 451 454 448
212 5 438 442 444 440 451 457 460 454
213 5 346 352 451 445 347 353 452 446
214 5 352 358 457 451 353 359 458 452
215 5 445 451 454 448 446 452 455 449
216 5 451 457 460 454 452 458 461 455
217 5 347 353 452 446 348 354 453 447
218 5 353 359 458 452 354 360 459 453
219 5 446 452 455 449 447 453 456 450
220 5 452 458 461 455 453 459 462 456
221 5 348 354 453 447 363 367 467 463
222 5 354 360 459 453 367 371 471 467
223 5 447 453 456 450 463 467 469 465
224 5 453 459 462 456 467 471 473 469
225 5 363 367 467 463 364 368 468 464
226 5 367 371 471 467 368 372 472 468
227 5 463 467 469 465 464 468 470 466
228 5 467 471 473 469 468 472 474 470
229 5 364 368 468 464 374 376 477 475
230 5 368 372 472 468 376 378 479 477
231 5 464 468 470 466 475 477 478 476
232 5 468 472 474 470 477 479 480 478
233 5 374 376 477 475 381 385 485 481
234 5 376 378 479 477 385 389 489 485
235 5 475 477 478 476 481 485 487 483
236 5 477 479 480 478 485 489 491 487
237 5 381 385 485 481 382 386 486 482
238 5 385 389 489 485 386 390 490 486
239 5 481 485 487 483 482 486 488 484
240 5 485 489 491 487 486 490 492 488
241 5 230 530 532 232 253 541 544 256
243 5 232 532 534 234 256 544 547 259
245 5 253 541 544 256 254 542 545 257
247 5 256 544 547 259 257 545 548 260
249 5 254 542 545 257 255 543 546 258
251 5 257 545 548 260 258 546 549 261
253 5 255 543 546 258 274 559 561 276
255 5 258 546 549 261 276 561 563 278
257 5 274 559 561 276 275 560 562 277
259 5 276 561 563 278 277 562 564 279
261 5 275 560 562 277 286 571 572 287
263 5 277 562 564 279 287 572 573 288
265 5 286 571 572 287 301 577 579 303
267 5 287 572 573 288 303 579 581 305
269 5 301 577 579 303 302 578 580 304
271 5 303 579 581 305 304 580 582 306
273 5 234 534 603 339 259 547 613 355
275 5 339 603 606 342 355 613 616 358
277 5 259 547 613 355 260 548 614 356
279 5 355 613 616 358 356 614 617 359
281 5 260 548 614 356 261 549 615 357
283 5 356 614 617 359 357 615 618 360
285 5 261 549 615 357 278 563 625 369
287 5 357 615 618 360 369 625 627 371
289 5 278 563 625 369 279 564 626 370
291 5 369 625 627 371 370 626 628 372
293 5 279 564 626 370 288 573 633 377
295 5 370 626 628 372 377 633 634 378
297 5 288 573 633 377 305 581 637 387
299 5 377 633 634 378 387 637 639 389
301 5 305 581 637 387 306 582 638 388
303 5 387 637 639 389 388 638 640 390
305 5 342 606 674 442 358 616 681 457
307 5 442 674 676 444 457 681 684 460
309 5 358 616 681 457 359 617 682 458
311 5 457 681 684 460 458 682 685 461
313 5 359 617 682 458 360 618 683 459
315 5 458 682 685 461 459 683 686 462
317 5 360 618 683 459 371 627 693 471
319 5 459 683 686 462 471 693 695 473
321 5 371 627 693 471 372 628 694 472
323 5 471 693 695 473 472 694 696 474
325 5 372 628 694 472 378 634 701 479
327 5 472 694 696 474 479 701 702 480
329 5 378 634 701 479 389 639 705 489
331 5 479 701 702 480 489 705 707 491
333 5 389 639 705 489 390 640 706 490
335 5 489 705 707 491 490 706 708 492
$
$$$$$$$$$ Shell Elements
$
*ELEMENT_SHELL
$ eid pid n1 n2 n3 n4
355 3 32 48 49 33
356 3 33 49 50 34
357 3 34 50 51 35
358 3 35 51 52 36
359 3 36 52 53 37
371 3 64 80 81 65
372 3 65 81 82 66
373 3 66 82 83 67
374 3 67 83 84 68
375 3 68 84 85 69
449 3 48 713 751 714
450 3 713 49 716 751
451 3 751 716 137 736
452 3 714 751 736 135
453 3 49 715 752 716
454 3 715 50 718 752
455 3 752 718 139 739
456 3 716 752 739 137
457 3 50 717 753 718
458 3 717 51 720 753
459 3 753 720 141 742
460 3 718 753 742 139
461 3 51 719 754 720
462 3 719 52 722 754
463 3 754 722 143 745
464 3 720 754 745 141
465 3 52 721 755 722
466 3 721 53 723 755
467 3 755 723 145 748
468 3 722 755 748 143
469 3 135 736 756 735
470 3 736 137 738 756
471 3 756 738 138 737
472 3 735 756 737 136
473 3 137 739 757 738
474 3 739 139 741 757
475 3 757 741 140 740
476 3 738 757 740 138
477 3 139 742 758 741
478 3 742 141 744 758
479 3 758 744 142 743
480 3 741 758 743 140
481 3 141 745 759 744
482 3 745 143 747 759
483 3 759 747 144 746
484 3 744 759 746 142
485 3 143 748 760 747
486 3 748 145 750 760
487 3 760 750 146 749
488 3 747 760 749 144
489 3 136 737 761 725
490 3 737 138 727 761
491 3 761 727 81 724
492 3 725 761 724 80
493 3 138 740 762 727
494 3 740 140 729 762
495 3 762 729 82 726
496 3 727 762 726 81
497 3 140 743 763 729
498 3 743 142 731 763
499 3 763 731 83 728
500 3 729 763 728 82
501 3 142 746 764 731
502 3 746 144 733 764
503 3 764 733 84 730
504 3 731 764 730 83
505 3 144 749 765 733
506 3 749 146 734 765
507 3 765 734 85 732
508 3 733 765 732 84
$
$
*END
