Contact III

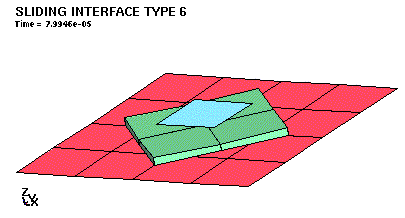

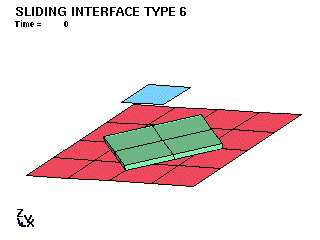

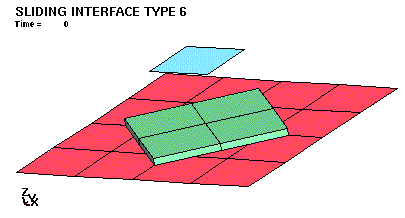

A box is lying on a plate. Contact between box bottom nodes and plate is specified with *CONTACT_TIED_NODES_TO_SURFACE keyword. A second plate above them is given an initial velocity in direction of the box. Contact between second plate and box upper nodes is specified with *CONTACT_AUTOMATIC_NODES_TO_SURFACE keyword.
*BOUNDARY_SPC_SET *CONTACT_AUTOMATIC_NODES_TO_SURFACE *CONTACT_AUTOMATIC_SURFACE_TO_SURFACE *CONTACT_TIED_NODES_TO_SURFACE *CONTROL_CONTACT *CONTROL_ENERGY *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DATABASE_EXTENT_BINARY *DATABASE_GLSTAT *DATABASE_HISTORY_NODE *DATABASE_MATSUM *DATABASE_RCFORC *DEFINE_BOX *ELEMENT_SHELL *END *HOURGLASS *INITIAL_VELOCITY_NODE *KEYWORD *MAT_ELASTIC *NODE *PART *PART_CONTACT *SECTION_SHELL *SET_NODE_LIST *SET_PART *TITLE
*KEYWORD
*TITLE
Sliding Interface Type 6
*CONTROL_TERMINATION
$ f i f f f
$ endtim endcyc dtmin endneg endmas
2.00E-4
*CONTROL_TIMESTEP
$ f f i f f i i i
$ dtinit scft isdo tslimt dtms lctm erode ms1st
0.50
*CONTROL_CONTACT
$ slsfac rwpnal islchk shlthk penopt thkchg orien
2 2
$ usrstr usrfrc nsbcs interm xpene ssthk ecdt tiedprj
*CONTROL_ENERGY
$ i i i i
$ hgen rwen slnten rylen
2 1 2 1
*DATABASE_EXTENT_BINARY
$ i i i i i i i i
$ neiph neips maxint strflg sigflg epsflg rltflg engflg
1
$ i i i i i i
$ cmpflg ieverp beamip dcomp shge stssz
1
*DATABASE_BINARY_D3PLOT
$ f i
$ dt/cycl lcdt
1.00000-5 0
*DATABASE_GLSTAT
1.00000-6 0
*DATABASE_MATSUM
1.00000-6 0
*DATABASE_RCFORC
1.00000-6
*MAT_ELASTIC
$ f f f f f f f
$ mid ro e pr da db k
1 7.85e-9 210000.0 0.300
*SECTION_SHELL
$ i i f f f f i
$ sid elform shrf nip propt qr/irid icomp
1 2 0.83333 2.0 3.0
1.0 1.0 1.0 1.0
*SECTION_SHELL
$ i i f f f f i
$ sid elform shrf nip propt qr/irid icomp
2 2 0.83333 2.0 3.0
2.0 2.0 2.0 2.0
*HOURGLASS
$ i i f i f f f f
$ hgid ihq qm ibq q1 q2 qb qw
1 4
*PART
Elastic Material
$ i i i i i i i i
$ pid sid mid eosid hgid grav adpopt tmid
1 1 1 1
*PART_CONTACT
Elastic Material
$ i i i i i i i i
$ pid sid mid eosid hgid grav adpopt tmid
2 2 1 1
$ FS FD DC VC OPTT SFT SSF
2.0
*PART
Elastic Material
$ i i i i i i i i
$ pid sid mid eosid hgid grav adpopt tmid
3 1 1 1
*SET_NODE_LIST
2
1 2 3 4 5 6 10 11
15 16 20 21 22 23 24 25
*BOUNDARY_SPC_SET
$ NSID CID DOFX DOFY DOFZ DOFRX DOFRY DOFRZ
2 0 1 1 1 0 0 0
*NODE
$ i8 f f f i i
$ node x y z tc rc
*ELEMENT_SHELL
$ i i i i i i
$ eid pid n1 n2 n3 n4
*DATABASE_HISTORY_NODE
$ i i i i i i i i
$ id1 id2 id3 id4 id5 id6 id7 id8
101 13 213
*INITIAL_VELOCITY_NODE
$ i f f f f f f
$ nid vx vy vz vxr vyr vzr
101 -100000.0
102 -100000.0
103 -100000.0
104 -100000.0
$...*....1....*....2....*....3....*....4....*....5....*....6....*....7....*....8
$ impactor vs. box top
*CONTACT_AUTOMATIC_SURFACE_TO_SURFACE
$ i i i i i i i i
$ ssid msid sstyp mstyp sboxid mboxid spr mpr
1 2 2 2 1 0 1 1
$ f f f f f i f f
$ fs fd dc vc vdc penchk bt dt
$ f f f f f f f f
$ sfs sfm sst mst sfst sfmt fsf vsf
*SET_PART
1
3
*SET_PART
2
2
*DEFINE_BOX
$ i f f f f f f
$ boxid xmm xmx ymn ymx zmn zmx
1 19.0 21.0 19.0 21.0 0.90 1.10
$...*....1....*....2....*....3....*....4....*....5....*....6....*....7....*....8
$ box top middle node vs. plate
*CONTACT_AUTOMATIC_NODES_TO_SURFACE
$ i i i i i i i i
$ ssid msid sstyp mstyp sboxid mboxid spr mpr
3 1 4 3 0 2 1 1
$ f f f f f i f f
$ fs fd dc vc vdc penchk bt dt
$ f f f f f f f f
$ sfs sfm sst mst sfst sfmt fsf vsf
*SET_NODE_LIST
$ i f f f f
$ sid da1 da2 da3 da4
3
$ i i i i i i i i
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
215
*DEFINE_BOX
$ i f f f f f f
$ boxid xmm xmx ymn ymx zmn zmx
2 19.0 21.0 19.0 21.0 -0.10 0.10
$...*....1....*....2....*....3....*....4....*....5....*....6....*....7....*....8
$ box bottom nodes on plate
*CONTACT_TIED_NODES_TO_SURFACE
$ i i i i i i i i
$ ssid msid sstyp mstyp sboxid mboxid spr mpr
5 1 4 3 0 0 1 1
$ f f f f f i f f
$ fs fd dc vc vdc penchk bt dt
$ f f f f f f f f
$ sfs sfm sst mst sfst sfmt fsf vsf
*SET_NODE_LIST
$ i f f f f
$ sid da1 da2 da3 da4
5
$ i i i i i i i i
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
201 202 203 204 206 207 208 209
*END
