Advection A
This is a Lagrangian model of a bar that is plastically deformed at one end. To generate plastic deformation *INITIAL_STRESS_SOLID command is used. Input deck A is just a preparation for decks B and C, with which you can study how well the advection schemes preserve the shapes of the history variable fields. Download is available in the download section of this document.
Keywords
*BOUNDARY_PRESCRIBED_MOTION_SET *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DEFINE_CURVE *ELEMENT_SOLID *END *INITIAL_STRESS_SOLID *KEYWORD *MAT_PLASTIC_KINEMATIC *NODE *PART *SECTION_SOLID *SET_NODE_LIST_GENERATE
Reduced Input
*KEYWORD *CONTROL_TERMINATION 0.05 *CONTROL_TIMESTEP 0.0, 0.8 *BOUNDARY_PRESCRIBED_MOTION_SET 1, 1, 0, 1, 1.0 *SET_NODE_LIST_GENERATE 1 1, 1204 *DEFINE_CURVE 1 0.0, 100.0 1.0, 100.0 *DATABASE_BINARY_D3PLOT 0.0001 *MAT_PLASTIC_KINEMATIC 1, 10000.0, 1.0E+10, 0.0, 1.0E+07 *SECTION_SOLID 1, 1 *PART 1, 1, 1 *INITIAL_STRESS_SOLID $ *NODE $ *ELEMENT_SOLID $ *END
Figures

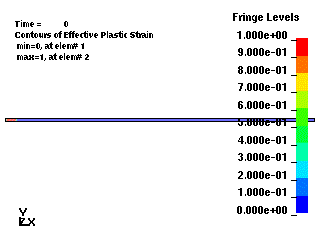

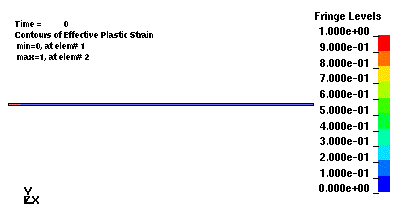

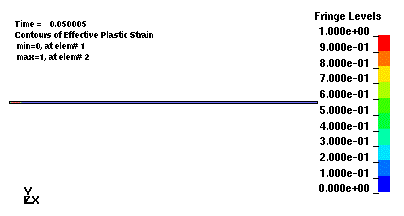

Animated Result
