Advection B
In input deck B an Eulerian formulation with 1st order advection is used. As it travels through the bar, the plastic strain field is stretched and its maximum value decreases. Download is available in the download section of this document.
Keywords
Keywords
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: advection_B.k
The used Keywords in alphabetical order.
*BOUNDARY_PRESCRIBED_MOTION_SET *CONTROL_ALE *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DEFINE_CURVE *ELEMENT_SOLID *END *INITIAL_STRESS_SOLID *KEYWORD *MAT_PLASTIC_KINEMATIC *NODE *PART *SECTION_SOLID *SET_NODE_LIST_GENERATE
Reduced Input
Reduced Input
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: advection_B.k
*Node and *Element Cards are removed
*KEYWORD *CONTROL_TERMINATION 0.05 *CONTROL_TIMESTEP 0.0, 0.8 *BOUNDARY_PRESCRIBED_MOTION_SET 1, 1, 0, 1, 1.0 *SET_NODE_LIST_GENERATE 1 1, 1204 *DEFINE_CURVE 1 0.0, 100.0 1.0, 100.0 *DATABASE_BINARY_D3PLOT 0.0001 *MAT_PLASTIC_KINEMATIC 1, 10000.0, 1.0E+10, 0.0, 1.0E+07 *CONTROL_ALE 0, 1, 1, -1 *SECTION_SOLID 1, 6 *PART 1, 1, 1 *INITIAL_STRESS_SOLID $ *NODE $ *ELEMENT_SOLID $ *END
Figures
Figures

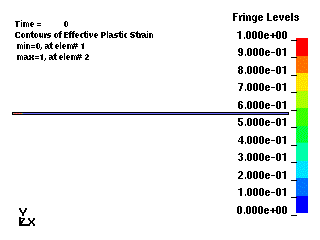

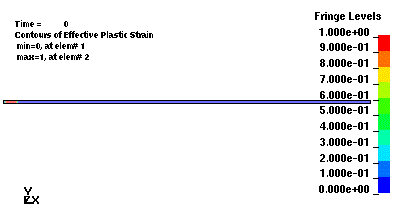

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: advection_B.k
Animated Result
Animated Result

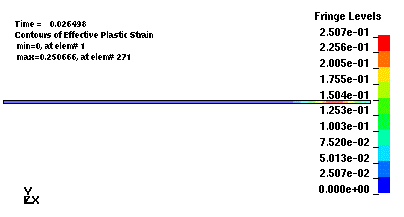

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: advection_B.k
Download
Download
This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: advection_B.k
