Bird A
This is a small idealized bird strike model. File bird_A.k is Lagrangian and just a preparation for the following. Download is available in the download section of this document.
Keywords
*CONTROL_ENERGY *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DATABASE_GLSTAT *DATABASE_MATSUM *ELEMENT_SHELL *ELEMENT_SOLID *END *EOS_LINEAR_POLYNOMIAL *INITIAL_VELOCITY *KEYWORD *MAT_ELASTIC *MAT_NULL *NODE *PART *SECTION_SHELL *SECTION_SOLID *SET_NODE_LIST_GENERATE *TITLE
Reduced Input
*KEYWORD
*TITLE
Bird
*CONTROL_TERMINATION
0.6000000
*CONTROL_TIMESTEP
0.0000000 0.7000000
*CONTROL_ENERGY
2 2 1 1
*DATABASE_BINARY_D3PLOT
0.0200000
*DATABASE_GLSTAT
0.0010000
*DATABASE_MATSUM
0.0010000
*MAT_ELASTIC
1 1.0000000 1.00000+4 0.0000000
*MAT_NULL
2 0.781 -10.0 0.10
*EOS_LINEAR_POLYNOMIAL
2 0.0 10.0
*SECTION_SHELL
1
0.1000000 0.1000000 0.1000000 0.1000000
*SECTION_SOLID
2 1
*PART
3 1 1
*PART
4 2 2 2
*PART
5 2 2 2
*INITIAL_VELOCITY
95
5.,-1.,0.,0.,0.,100.
*SET_NODE_LIST_GENERATE
95
1569,3136
*NODE
$
*ELEMENT_SOLID
$
*ELEMENT_SHELL
$
*END

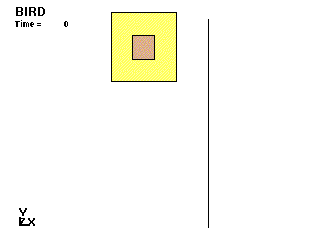

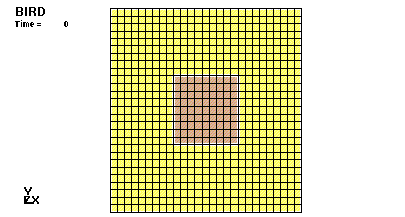

Figures

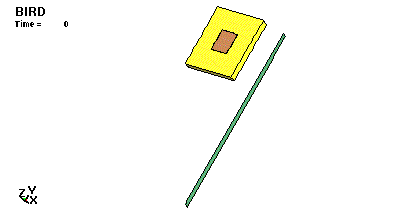

Animated Result
