Pipe C
The input deck models a viscous fluid that is flowing through a pipe. Download is available in the download section of this document.
Keywords
Keywords
The used Keywords in alphabetical order.
*BOUNDARY_PRESCRIBED_MOTION_NODE *CONTROL_ALE *CONTROL_HOURGLASS *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DEFINE_CURVE *ELEMENT_SOLID *END *EOS_GRUNEISEN *KEYWORD *MAT_NULL *NODE *PART *SECTION_SOLID_ALE *TITLE
Reduced Input
Reduced Input
*Node and *Element Cards are removed.
*KEYWORD
*TITLE
Channel
*CONTROL_TERMINATION
0.0200000
*CONTROL_TIMESTEP
0.0000000 0.7000000
*DATABASE_BINARY_D3PLOT
0.0002000
*CONTROL_HOURGLASS
1 0.0001
*CONTROL_ALE
0 1 1-1.0000000 0.0000000 0.0000000 0.0000000
*MAT_NULL
1 1000.0000 -1.00E+10 1.0000000
*EOS_GRUNEISEN
1 1500.0000
*SECTION_SOLID_ALE
1 6
*PART
1 1 1 1
*DEFINE_CURVE
1 0 0.0000000 0.0000000 0.0000000 0.0000000
0.00000000E+00 1.00000000E-01
1.00000000E+06 1.00000000E-01
*BOUNDARY_PRESCRIBED_MOTION_NODE
$
*NODE
$
*ELEMENT_SOLID
$
*END
Figures
Figures

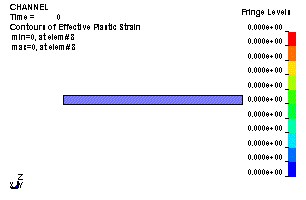

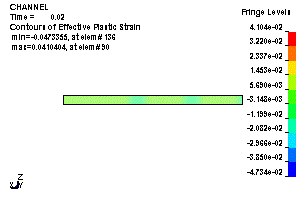

Animated Result
Animated Result
