Bar A

This is a quarter model of a Taylor bar impacting a rigid wall. The Taylor bar is used in experiments to determine strain rate effects in metals. The input deck A is set up for a Lagrangian analysis. Elements at the bottom of the bar get highly deformed. Download is available in the download section of this document.

Keywords

Keywords

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: taylor_A.k

The used Keywords in alphabetical order.

*CONTROL_ENERGY
*CONTROL_TERMINATION
*CONTROL_TIMESTEP
*DATABASE_BINARY_D3PLOT
*DATABASE_BINARY_D3THDT
*DATABASE_GLSTAT
*ELEMENT_SOLID
*END
*INITIAL_VELOCITY
*KEYWORD
*MAT_PLASTIC_KINEMATIC
*NODE
*PART
*RIGIDWALL_PLANAR
*SECTION_SOLID
*SET_NODE_LIST
*TITLE

Reduced Input

Reduced Input

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: taylor_A.k

*Node and *Element Cards are removed.

  *KEYWORD
  *TITLE
  Taylor bar
  *CONTROL_TERMINATION
   3.00000-5
  *CONTROL_TIMESTEP
   0.0000000 0.7000000         0 0.0000000 0.0000000         0         0         0
  *CONTROL_ENERGY
           2         2         1         1
  *DATABASE_BINARY_D3PLOT
   1.0000-06                   0
  *DATABASE_GLSTAT
   1.0000-06
  *DATABASE_BINARY_D3THDT
   99999.000
  *MAT_PLASTIC_KINEMATIC
           1 8930.0000 1.1700+11 0.3500000 4.00000+8 1.00000+8 1.0000000
   0.0000000 0.0000000 0.0000000
  *INITIAL_VELOCITY

   0.0000000-280.00000 0.0000000
  *RIGIDWALL_PLANAR
           1         0         0
   0.0000000-0.0112000 0.0000000 0.0000000 0.9888000 0.0000000 0.0000000
  *SECTION_SOLID
           1         1
  *PART

           1         1         1         0         0         0         0         0
  *NODE
  $
  *ELEMENT_SOLID
  $
  *SET_NODE_LIST
           1
  $
  *END

Figures

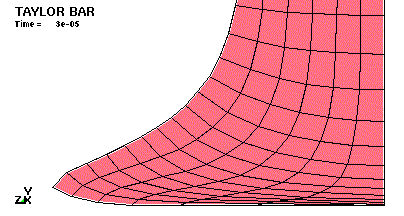

Figures

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: taylor_A.k



Animated Result

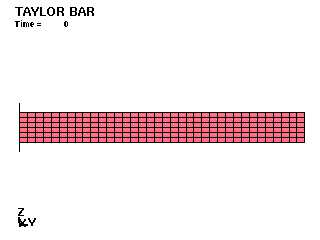

Animated Result

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: taylor_A.k

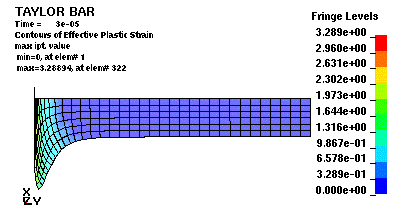

Result

Download

Download

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: taylor_A.k
