Bar D

This is a quarter model of a Taylor bar impacting a rigid wall. In input deck D ALE smoothing and 2nd order advection is used. Calculation time is reduced by increasing the number of cycles between advections. Download is available in the download section of this document.

Keywords

Keywords

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: taylor_D.k

The used Keywords in alphabetical order.

*CONTROL_ALE
*CONTROL_ENERGY
*CONTROL_TERMINATION
*CONTROL_TIMESTEP
*DATABASE_BINARY_D3PLOT
*DATABASE_BINARY_D3THDT
*DATABASE_GLSTAT
*ELEMENT_SOLID
*END
*INITIAL_VELOCITY
*KEYWORD
*MAT_PLASTIC_KINEMATIC
*NODE
*PART
*RIGIDWALL_PLANAR
*SECTION_SOLID
*SET_NODE_LIST
*TITLE

Reduced Input

Reduced Input

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: taylor_D.k

*Node and *Element Cards are removed.

  *KEYWORD
  *TITLE
  Taylor bar
  *CONTROL_ALE
           0         2         2       1.0

  *CONTROL_TERMINATION
   3.00000-5
  *CONTROL_TIMESTEP
   0.0000000 0.7000000         0 0.0000000 0.0000000         0         0         0
  *CONTROL_ENERGY
           2         2         1         1
  *DATABASE_BINARY_D3PLOT
   1.0000-06                   0
  *DATABASE_GLSTAT
   1.0000-06
  *DATABASE_BINARY_D3THDT
   99999.000
  *MAT_PLASTIC_KINEMATIC
           1 8930.0000 1.1700+11 0.3500000 4.00000+8 1.00000+8 1.0000000
   0.0000000 0.0000000 0.0000000
  *INITIAL_VELOCITY

   0.0000000-280.00000 0.0000000
  *RIGIDWALL_PLANAR
           1         0         0
   0.0000000-0.0112000 0.0000000 0.0000000 0.9888000 0.0000000 0.0000000
  *SECTION_SOLID
           1         5
  *PART

           1         1         1         0         0         0         0         0
  *NODE
  $
  *ELEMENT_SOLID
  $
  *SET_NODE_LIST
           1
  $
  *END

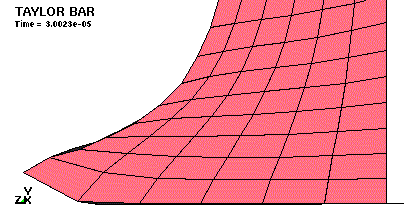

Figures

Figures

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: taylor_D.k

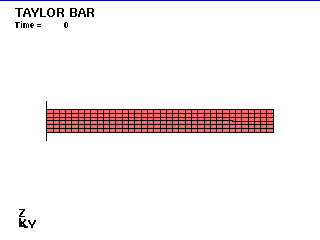

Animated Result

Animated Result

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: taylor_D.k

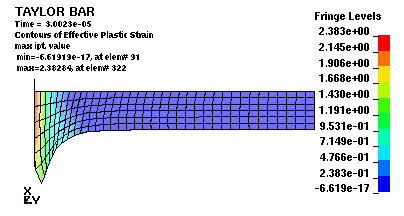

Result

Download

Download

This example has been taken from the ALE (Arbitrary Lagrangian Eulerian Method) class of M'hamed Souli and Lars Olvosson. Example name: taylor_D.k
