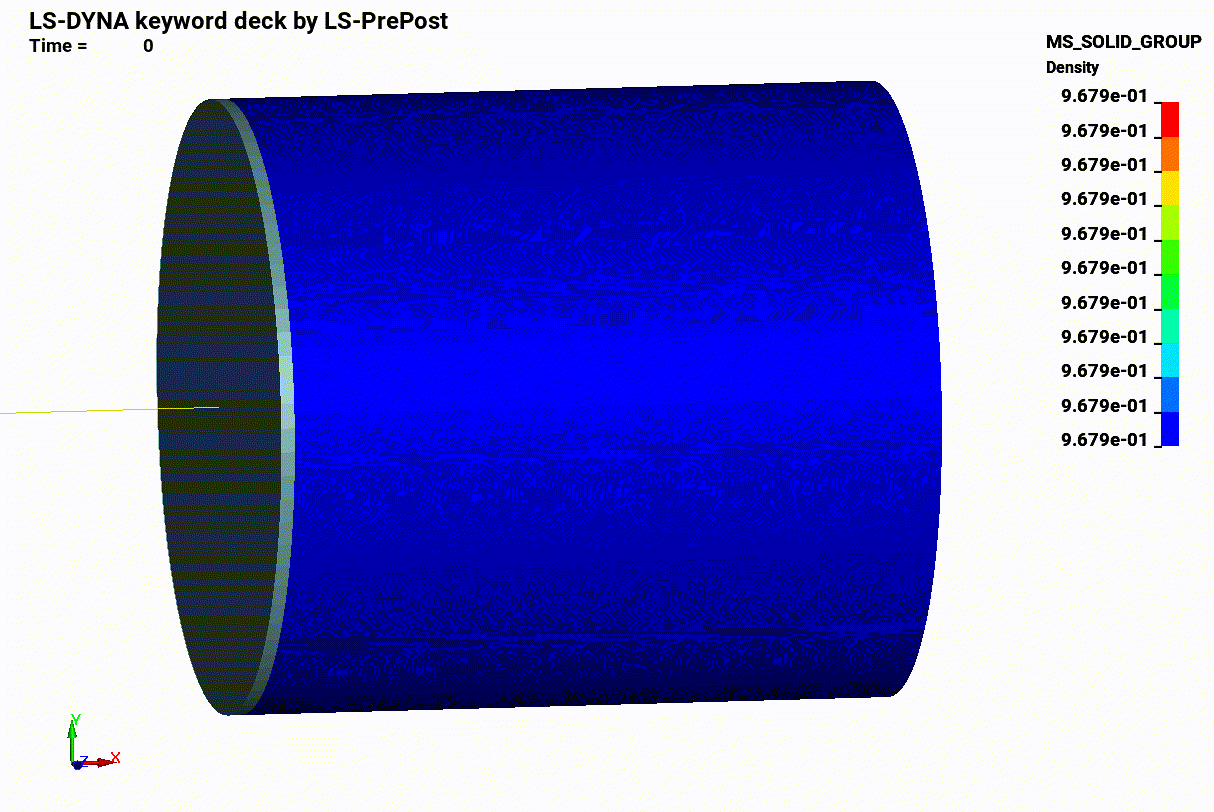

In this 3D fluid-structure interaction (FSI) example, the flow field inside the piston chamber is simulated during the valve’s back and forth motion. Here the dual CESE FSI-mmm solver is used, which is based on the moving mesh method (mmm). This method is more suitable for small deformation problems.
*DUALCESE_MODEL
*DUALCESE_CONTROL_SOLVER
*DUALCESE_CONTROL_TIMESTEP
*DUALCESE_CONTROL_LIMITER
*DUALCESE_INCLUDE_MODEL
*DUALCESE_BOUNDARY_SLIDING_SEGMENT_SET
*DUALCESE_BOUNDARY_REFLECTIVE_SEGMENT_SET
*DUALCESE_BOUNDARY_FSI_SEGMENT_SET
*DUALCESE_INITIAL
*DUALCESE_PART
*DUALCESE_CONTROL_MESH_MOV
*DUALCESE_MAT_GAS
*DUALCESE_EOS_IDEAL_GAS
*DUALCESE_D3PLOT
*CONTROL_TERMINATION
*DATABASE_BINARY_D3PLOT
*DATABASE_BINARY_D3DUMP
*INCLUDE
*PART
*SECTION_BEAM
*SECTION_SOLID
*MAT_LINEAR_ELASTIC_DISCRETE_BEAM
*MAT_ELASTIC
*HOURGLASS
*DEFINE_CURVE
*LOAD_SEGMENT_SET
*KEYWORD
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
*DUALCESE_CONTROL_SOLVER
$ ieqns igeom iframeref
Euler 3D fixed
$ NS 3D fixed
*DUALCESE_CONTROL_TIMESTEP
$ iddt cfl dtint
2 0.9 0.1e-5
*DUALCESE_CONTROL_LIMITER
$ idlmt alfa beta epsr
0 1. 1.0 0.001
*DUALCESE_INCLUDE_MODEL
fluid_mesh.k
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ Setup the boundary conditions for fluid
*DUALCESE_BOUNDARY_SLIDING_SEGMENT_SET
$ ssid
7
$*DUALCESE_BOUNDARY_SOLID_WALL_SEGMENT_SET
*DUALCESE_BOUNDARY_REFLECTIVE_SEGMENT_SET
$ ssid
2
*DUALCESE_BOUNDARY_FSI_SEGMENT_SET
$ ssid ref_p
10.774723e5
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ Setup the initial conditions for fluid
*DUALCESE_INITIAL
$ uic vic wic rhoic pic tic hic
0.0 0.0 0.0 0.967860.774723e5
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ Setup fluid properties
*DUALCESE_PART
$ pid mid eosid FSI-type MOVMSHALG
1 4 3 MMM 21
*DUALCESE_CONTROL_MESH_MOV
$ ID IALG NITER RELERRTOL MXDISP_R
21 9 1.e-3
*DUALCESE_MAT_GAS
$ mid c1 c2 prnd
4 1.458e-6 110.4 0.72
*DUALCESE_EOS_IDEAL_GAS
$ eosid cv cp t0 v0
3 713.5 1001.5
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ Handle output of state and restart data
*DUALCESE_D3PLOT
density
pressure
velocity
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
*END
