Contact II

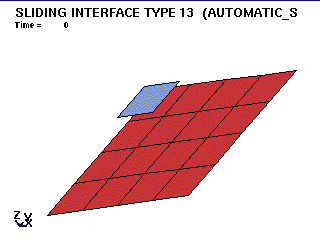

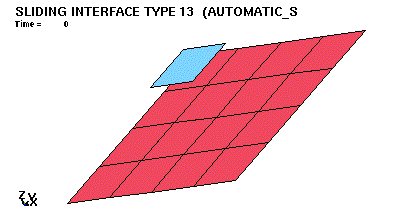

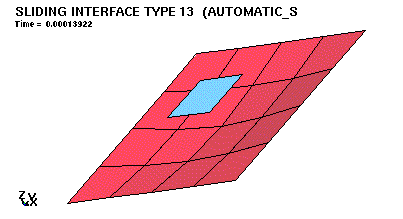

This corresponds to the previous example. Usage of *CONTACT_AUTOMATIC_SINGLE_SURFACE and *CONTACT_FORCE_TRANSDUCER_PENALTY keywords is shown.
*BOUNDARY_SPC_SET *CONTACT_AUTOMATIC_SINGLE_SURFACE *CONTACT_FORCE_TRANSDUCER_PENALTY *CONTROL_CONTACT *CONTROL_ENERGY *CONTROL_HOURGLASS *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DATABASE_EXTENT_BINARY *DATABASE_GLSTAT *DATABASE_HISTORY_NODE *DATABASE_MATSUM *DATABASE_NODOUT *DATABASE_RCFORC *DATABASE_SLEOUT *DATABASE_SPCFORC *ELEMENT_SHELL *END *INITIAL_VELOCITY *KEYWORD *MAT_ELASTIC *NODE *PARAMETER *PART *SECTION_SHELL *SET_NODE_LIST *SET_SEGMENT *TITLE
*KEYWORD $ new *PARAMETER keyword in version 970 $ *PARAMETER $ PRMR VAL $ initial velocity r velo -100000.0 $ time interval between ASCII database outputs r dt 0.001e-3 *TITLE Sliding Interface Type 13 (automatic_single_surface) *CONTROL_TERMINATION $ f i f f f $ endtim endcyc dtmin endneg endmas 0.20E-3 *CONTROL_TIMESTEP $ f f i f f i i i $ dtinit scft isdo tslimt dtms lctm erode ms1st 0.50 *CONTROL_ENERGY $ i i i i $ hgen rwen slnten rylen 2 1 2 *CONTROL_HOURGLASS $ i f $ ihq qh 4 *CONTROL_CONTACT $ slsfac rwpnal islchk shlthk penopt thkchg orien 2 0 2 $ usrstr usrfrc nsbcs interm xpene ssthk ecdt tiedprj *CONTACT_AUTOMATIC_SINGLE_SURFACE $ i i i i i i i i $ ssid msid sstyp mstyp sboxid mboxid spr mpr 1 $ f f f f f i f f $ fs fd dc vc vdc penchk bt dt $ f f f f f f f f $ sfs sfm sst mst sfst sfmt fsf vsf *SET_SEGMENT $ i f f f f $ sid da1 da2 da3 da4 1 $ i i i i f f f f $ n1 n2 n3 n4 a1 a2 a3 a4 101 103 104 102 7 8 13 12 8 9 14 13 12 13 18 17 13 14 19 18 *CONTACT_FORCE_TRANSDUCER_PENALTY $ i i i i i i i i $ ssid msid sstyp mstyp sboxid mboxid spr mpr 2 3 $ f f f f f i f f $ fs fd dc vc vdc penchk bt dt $ f f f f f f f f $ sfs sfm sst mst sfst sfmt fsf vsf *DATABASE_EXTENT_BINARY $ i i i i i i i i $ neiph neips maxint strflg sigflg epsflg rltflg engflg 1 $ i i i $ cmpflg ieverp beamip 1 *DATABASE_BINARY_D3PLOT $ f i $ dt/cycl lcdt 0.0100E-3 *DATABASE_HISTORY_NODE $ i i i i i i i i $ id1 id2 id3 id4 id5 id6 id7 id8 12 13 101 *DATABASE_GLSTAT &dt *DATABASE_MATSUM &dt *DATABASE_SPCFORC &dt *DATABASE_RCFORC &dt *DATABASE_NODOUT &dt *DATABASE_SLEOUT &dt *MAT_ELASTIC $ i f f f f f f $ mid ro e pr da db k 1 7.85e-9 210000.0 0.300 *SECTION_SHELL $ i i f f f f i $ sid elform shrf nip propt qr/irid icomp 1 0.83333 2.0 3.0 $ f f f f f $ t1 t2 t3 t4 nloc 1.0 1.0 1.0 1.0 *SECTION_SHELL $ i i f f f f i $ sid elform shrf nip propt qr/irid icomp 2 0.83333 2.0 3.0 $ f f f f f $ t1 t2 t3 t4 nloc 2.0 2.0 2.0 2.0 *PART $ c $ head Impacted Material $ i i i i i i $ pid sid mid eosid hgid adpopt 1 1 1 0 0 0 *PART $ c $ head Impactor Material $ i i i i i i $ pid sid mid eosid hgid adpopt 2 2 1 0 0 0 *INITIAL_VELOCITY $ i i i $ nsid nsidex boxid 1 $ f f f f f f $ vx vy vz vxr vyr vzr &velo *SET_NODE_LIST $ i f f f f $ sid da1 da2 da3 da4 1 $ i i i i i i i i $ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8 101 102 103 104 *SET_NODE_LIST 2 1 2 3 4 5 6 10 11 15 16 20 21 22 23 24 25 *BOUNDARY_SPC_SET $ NSID CID DOFX DOFY DOFZ DOFRX DOFRY DOFRZ 2 0 1 1 1 0 0 0 *NODE $ i8 f f f $ node x y z *ELEMENT_SHELL $ i i i i i i $ eid pid n1 n2 n3 n4 *END
