Square Plate Transient Forced Vibration (solid mesh)

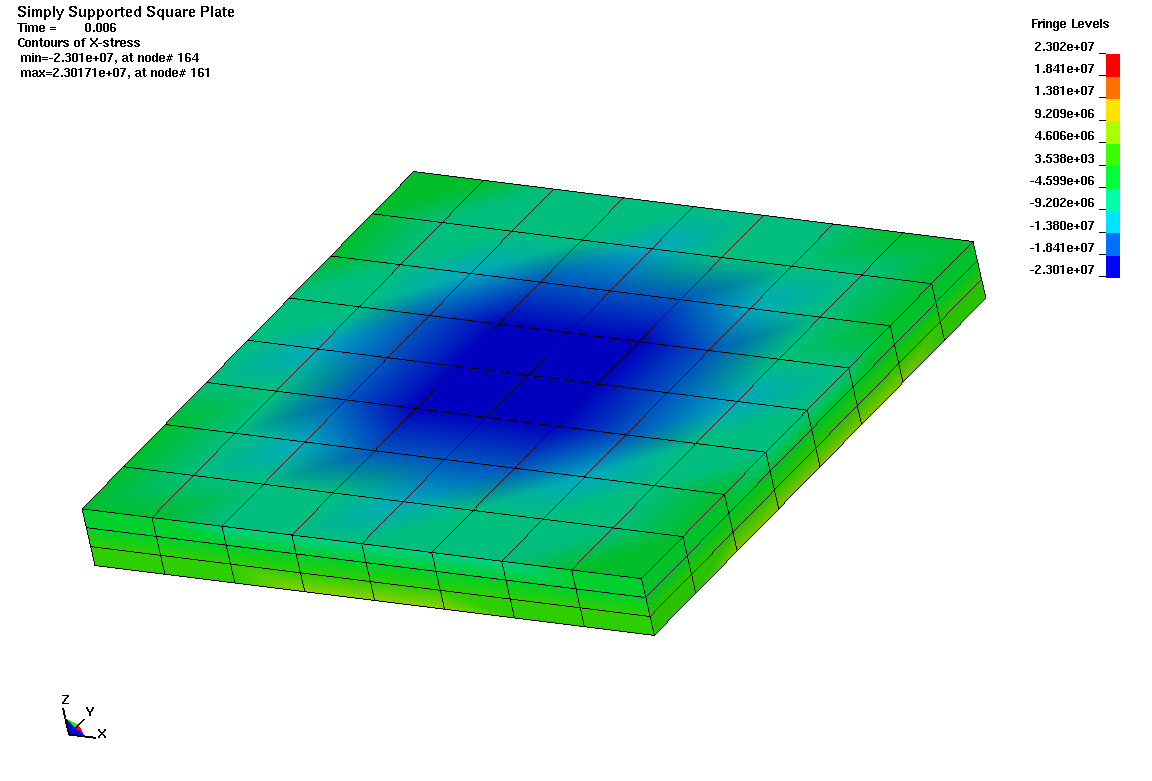

Transient analysis is perfomed to obtain the response of a plate subjected to a suddenly applied pressure on its top. Differences between constant stress solid (elform 1), fully integrated S/R solid (elforms 2, -1 and -2) and fully integrated quadratic 8 node element with nodal rotations (elform 3) can be studied. Example 14 from Introductory Manual for LS-DYNA Users by James M. Kennedy.
*BOUNDARY_SPC_SET *CONTROL_IMPLICIT_AUTO *CONTROL_IMPLICIT_DYNAMICS *CONTROL_IMPLICIT_GENERAL *CONTROL_IMPLICIT_SOLUTION *CONTROL_IMPLICIT_SOLVER *CONTROL_TERMINATION *DAMPING_GLOBAL *DATABASE_BINARY_D3PLOT *DATABASE_ELOUT *DATABASE_EXTENT_BINARY *DATABASE_HISTORY_NODE *DATABASE_HISTORY_SOLID *DATABASE_NODAL_FORCE_GROUP *DATABASE_NODFOR *DATABASE_NODOUT *DEFINE_CURVE *ELEMENT_SOLID *END *KEYWORD *LOAD_SEGMENT *MAT_ELASTIC *NODE *PART *SECTION_SOLID *SET_NODE_LIST *SET_NODE_LIST *TITLE
*KEYWORD
*TITLE

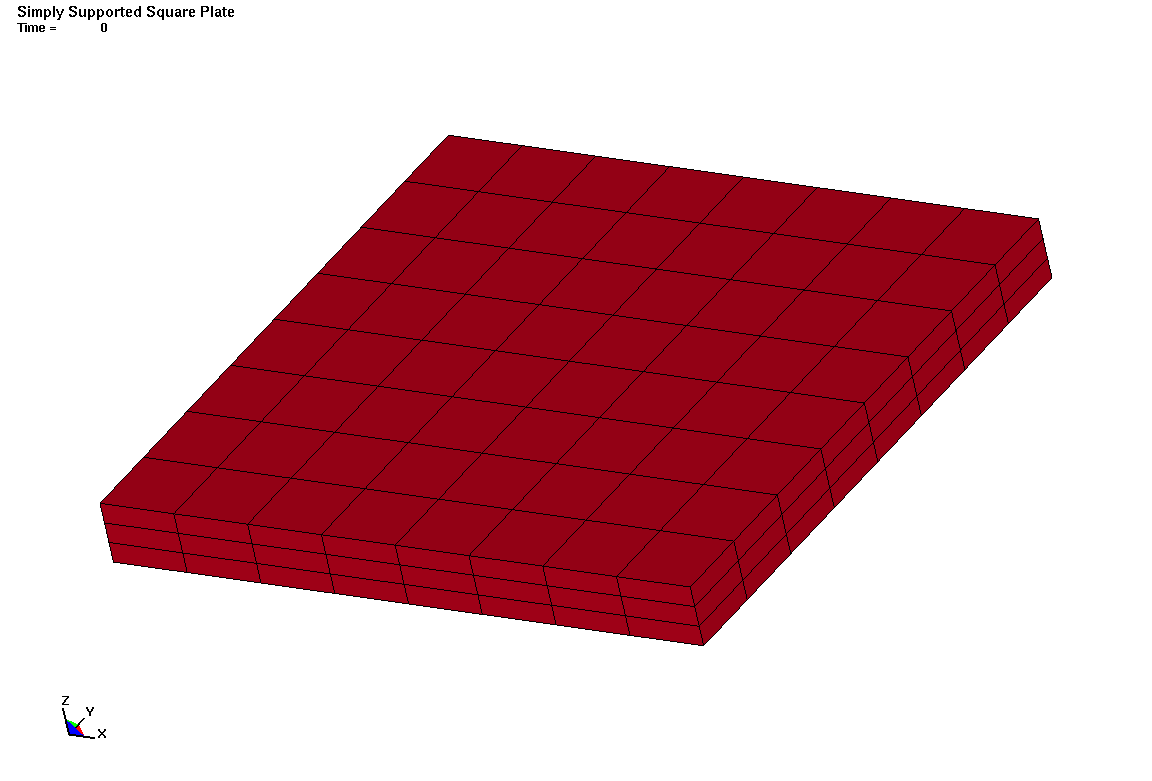

Simply Supported Square Plate: Transient Forced Vibration (solid mesh)
*CONTROL_IMPLICIT_AUTO
0 11 5 0.0 0.0
*CONTROL_IMPLICIT_DYNAMICS
1 0.500000 0.250000
*CONTROL_IMPLICIT_GENERAL
1 0.000100 2 1 2
*CONTROL_IMPLICIT_SOLVER
4 2 2 0 1 0.0 1 0.0
2
*CONTROL_IMPLICIT_SOLUTION
2 11 15 0.0010 0.0100 1.00e+10 0.900000 1.000000
2 1 1 2
0 1 0.0 1 2
*CONTROL_TERMINATION
0.020000 0 0.0 0.0 0.0
*DATABASE_ELOUT
1.0000e-06 1
*DATABASE_NODFOR
1.0000e-06 1
*DATABASE_NODOUT
1.0000e-06 1
*DATABASE_BINARY_D3PLOT
0.001000
*DATABASE_EXTENT_BINARY
8 1.0 stress stress
*DATABASE_HISTORY_SOLID
28 29 36 37
*DATABASE_NODAL_FORCE_GROUP
164
*DATABASE_HISTORY_NODE
161 162 163 164
*SET_NODE_LIST
164 0.0 0.0 0.0 0.0
164
*DAMPING_GLOBAL
0 11.53500 0.0 0.0 0.0 0.0 0.0 0.0
*DEFINE_CURVE
1 0 0.0 0.0 0.0 0.0
0.0 1.0000000e+06
1.00000000 1.0000000e+06
*ELEMENT_SOLID
*NODE
*BOUNDARY_SPC_SET
*PART
1 1 1
*SECTION_SOLID
1 1 1
*MAT_ELASTIC
1 8000.0002.0000e+11 0.300000 0.0 0.0 0.0
*LOAD_SEGMENT
1 1.000000 0.0 4 40 44 8
1 1.000000 0.0 8 44 48 12
1 1.000000 0.0 12 48 52 16
1 1.000000 0.0 16 52 56 20
1 1.000000 0.0 20 56 60 24
1 1.000000 0.0 24 60 64 28
1 1.000000 0.0 28 64 68 32
1 1.000000 0.0 32 68 72 36
1 1.000000 0.0 40 76 80 44
1 1.000000 0.0 44 80 84 48
1 1.000000 0.0 48 84 88 52
1 1.000000 0.0 52 88 92 56
1 1.000000 0.0 56 92 96 60
1 1.000000 0.0 60 96 100 64
1 1.000000 0.0 64 100 104 68
1 1.000000 0.0 68 104 108 72
1 1.000000 0.0 76 112 116 80
1 1.000000 0.0 80 116 120 84
1 1.000000 0.0 84 120 124 88
1 1.000000 0.0 88 124 128 92
1 1.000000 0.0 92 128 132 96
1 1.000000 0.0 96 132 136 100
1 1.000000 0.0 100 136 140 104
1 1.000000 0.0 104 140 144 108
1 1.000000 0.0 112 148 152 116
1 1.000000 0.0 116 152 156 120
1 1.000000 0.0 120 156 160 124
1 1.000000 0.0 124 160 164 128
1 1.000000 0.0 128 164 168 132
1 1.000000 0.0 132 168 172 136
1 1.000000 0.0 136 172 176 140
1 1.000000 0.0 140 176 180 144
1 1.000000 0.0 148 184 188 152
1 1.000000 0.0 152 188 192 156
1 1.000000 0.0 156 192 196 160
1 1.000000 0.0 160 196 200 164
1 1.000000 0.0 164 200 204 168
1 1.000000 0.0 168 204 208 172
1 1.000000 0.0 172 208 212 176
1 1.000000 0.0 176 212 216 180
1 1.000000 0.0 184 220 224 188
1 1.000000 0.0 188 224 228 192
1 1.000000 0.0 192 228 232 196
1 1.000000 0.0 196 232 236 200
1 1.000000 0.0 200 236 240 204
1 1.000000 0.0 204 240 244 208
1 1.000000 0.0 208 244 248 212
1 1.000000 0.0 212 248 252 216
1 1.000000 0.0 220 256 260 224
1 1.000000 0.0 224 260 264 228
1 1.000000 0.0 228 264 268 232
1 1.000000 0.0 232 268 272 236
1 1.000000 0.0 236 272 276 240
1 1.000000 0.0 240 276 280 244
1 1.000000 0.0 244 280 284 248
1 1.000000 0.0 248 284 288 252
1 1.000000 0.0 256 292 296 260
1 1.000000 0.0 260 296 300 264
1 1.000000 0.0 264 300 304 268
1 1.000000 0.0 268 304 308 272
1 1.000000 0.0 272 308 312 276
1 1.000000 0.0 276 312 316 280
1 1.000000 0.0 280 316 320 284
1 1.000000 0.0 284 320 324 288
*SET_NODE_LIST
1 0.0 0.0 0.0 0.0
1 37 73 109 145 181 217 253
289 293 297 301 305 309 313 317
321 285 249 213 177 141 105 69
33 29 25 21 17 13 9 5
*END
