BEM acoustics of a rectangular plate III

This is a third example of a recangular plate subjected to nodal force excitation. *FREQUENCY_DOMAIN_ACOUSTIC_BEM is used for running a vibro-acoustic problem with Kirchhoff Method. Example 8.3 from LS-Dyna training class NVH, Fatigue and Frequency Domain Analysis with LS-DYNA by Yun Huang.

*BOUNDARY_NON_REFLECTING
*CONTROL_ENERGY
*CONTROL_HOURGLASS
*CONTROL_TERMINATION
*CONTROL_TIMESTEP
*DAMPING_FREQUENCY_RANGE
*DATABASE_BINARY_D3PLOT
*DATABASE_BINARY_D3THDT
*DATABASE_GLSTAT
*DEFINE_CURVE
*ELEMENT_SOLID
*END
*FREQUENCY_DOMAIN_ACOUSTIC_BEM
*KEYWORD
*LOAD_NODE_POINT
*MAT_ACOUSTIC
*MAT_ELASTIC
*NODE
*PART
*PART
*SECTION_SHELL
*SECTION_SOLID
*SET_NODE_LIST
*SET_SEGMENT
*TITLE

*KEYWORD
*TITLE

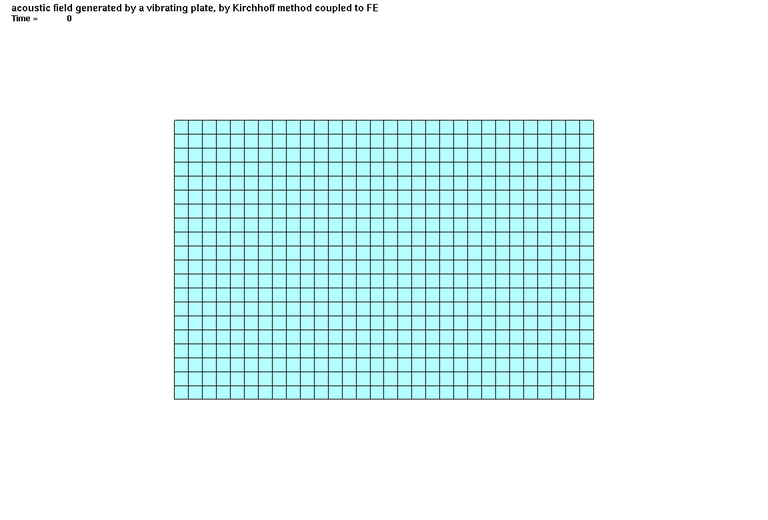

acoustic field generated by a vibrating plate, by Kirchhoff method
*FREQUENCY_DOMAIN_ACOUSTIC_BEM
  1.210000 340.00000 28.000000 350.00000       162     0.001     0.000 2.0000E-5
         1         1         0         0         4
         1         0     0.000         0
                   1
         1         1         0         0
*CONTROL_ENERGY
         2         0         0         0
*CONTROL_HOURGLASS
         0     0.000
*CONTROL_TERMINATION
  1.024000         0     0.000     0.000     0.000
*CONTROL_TIMESTEP
     0.000  0.900000         0     0.000 -1.100E-6         0         0         0
     0.000         0         0
*DATABASE_GLSTAT
 1.0000E-4         0         0         1
*DATABASE_BINARY_D3PLOT
  0.005000         0         0         0         0
         0
*DATABASE_BINARY_D3THDT
  0.001000         0         0         0         0
*BOUNDARY_NON_REFLECTING
         1     0.000     0.000
*LOAD_NODE_POINT
       477         3         1     0.000         0         0         0         0
*PART

         1         1         1         0         0         0         0         0
*SECTION_SHELL
         1        16  1.000000         3         0         0         0         0
  0.001000  0.001000  0.001000  0.001000     0.000     0.000     0.000         0
*MAT_ELASTIC
         1 7800.00002.1000E+11  0.300000     0.000     0.000         0
*PART

         2         2         2         0         0         0         0         0
*SECTION_SOLID
         2         8         0
*MAT_ACOUSTIC
         2  1.210000 340.00000     0.000     0.000     0.000     0.000
     0.000     0.000     0.000     0.000     0.000     0.000
*DEFINE_CURVE
*SET_NODE_LIST
         1     0.000     0.000     0.000     0.000

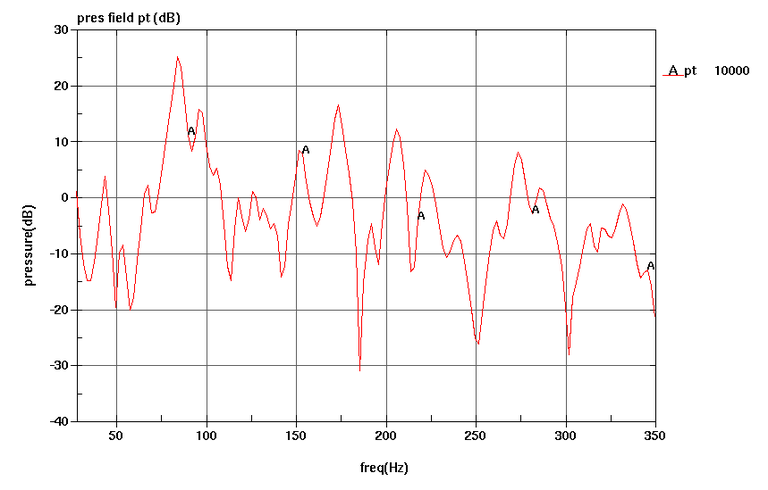

     10000         0         0         0         0         0         0         0
*SET_SEGMENT
*DAMPING_FREQUENCY_RANGE
  0.010000 30.000000 300.00000         0
*ELEMENT_SOLID
*NODE
*END
