Transient

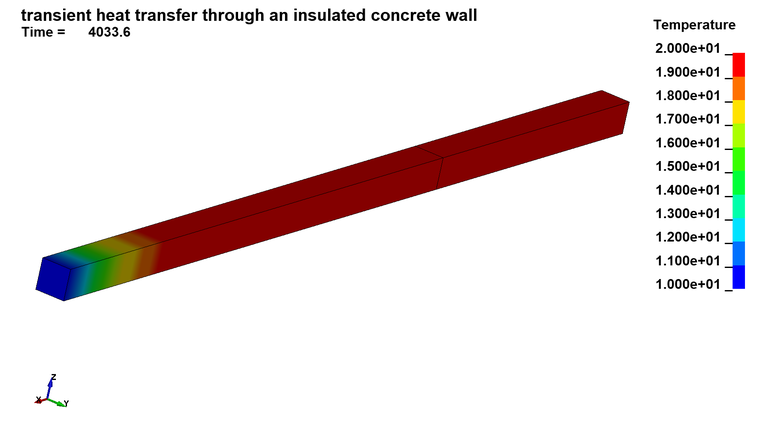

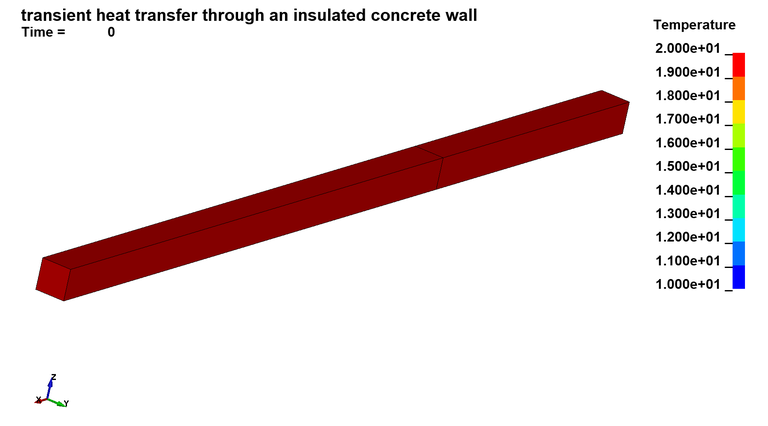

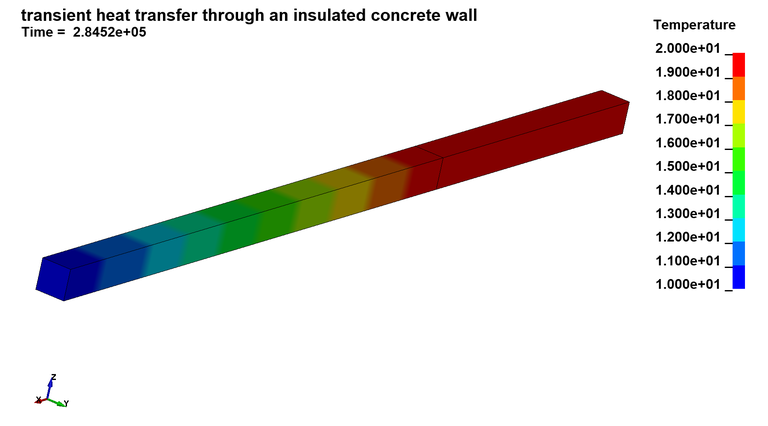

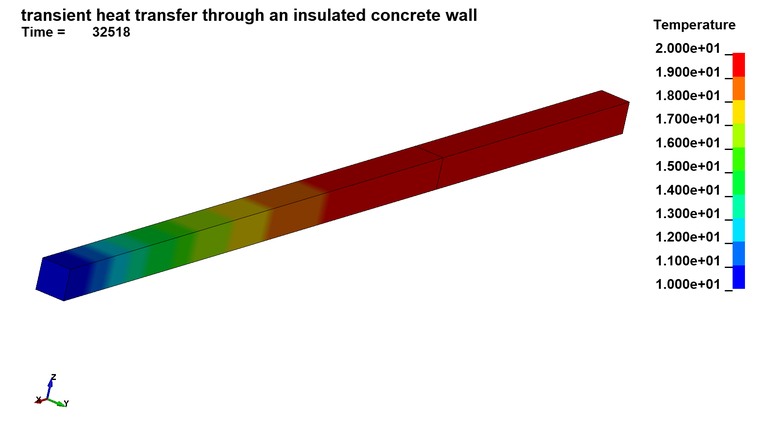

On the basis of a simple wall construction consisting of a concrete wall with insulation, over a time of 80 hours a transient thermal calculation is carried out. Initialy the whole wall has the same temperature. The outer wall is then cooled down and a new temperature field is reached.
*BOUNDARY_TEMPERATURE_SET *CONTROL_SOLUTION *CONTROL_TERMINATION *CONTROL_THERMAL_SOLVER *CONTROL_THERMAL_TIMESTEP *DATABASE_BINARY_D3PLOT *DATABASE_TPRINT *DEFINE_CURVE *ELEMENT_SOLID *END *INCLUDE *INITIAL_TERMPERATURE_SET *KEYWORD *MAT_THERMAL_ISOTROPIC *NODE *PART *SECTION_SOLID *SET_NODE_LIST_TITLE *TITLE
*KEYWORD
$
$=============================CONTROL DEFINITIONS ==============================
$
*TITLE
transient heat transfer through an insulated concrete wall
*CONTROL_SOLUTION
$ thermal only
$ soln nlq isnan lcint lcacc ncdcf
1
*CONTROL_THERMAL_SOLVER
$ transient thermal analysis
$ atype ptype solver cgtol gpt eqheat fwork sbc
1 0 11
$ msglvl maxitr abstol reltol omega tsf
*CONTROL_THERMAL_TIMESTEP
$ ts tip its tmin tmax dtemp tscp lcts
1 1.0 10 1.0 3600.0
*CONTROL_TERMINATION
$ endtim endcyc dtmin endeng endmas nosol
288000.0
$
$================================ OUTPUTDATA ===================================
$
*DATABASE_BINARY_D3PLOT
$ dt
300.0
*DATABASE_GLSTAT
$ dt
300.0
*DATABASE_MATSUM
$ dt
300.0
*DATABASE_TPRINT
$ dt
60.0
$
$============================== PART DEFINITIONS ===============================
$
*PART
$ title
concrete
$ pid secid mid eosid hgid grav adpopt tmid
1 1 0 0 0 0 0 1
*PART
$ title
insulation
$ pid secid mid eosid hgid grav adpopt tmid
2 1 0 0 0 0 0 2
$
$============================= SECTION PROPERTIES ==============================
$
*SECTION_SOLID
$ secid elform
1 1
$
$======================== THERMAL MATERIAL PROPERTIES ==========================
$
*MAT_THERMAL_ISOTROPIC
$ material concrete
$ tmid tro tgrlc tgmult tlat hlat
1 2.4e-9
$ hc tc
8.80e8 2.1
$
*MAT_THERMAL_ISOTROPIC
$ material insulation
$ tmid tro tgrlc tgmult tlat hlat
2 1.0e-10
$ hc tc
9.0e8 0.04
$
$======================== NODE/ELEMENT/SET DEFINTIONS ==========================
$
*INCLUDE
01_insulated_concrete_wall_parts.k
*SET_NODE_LIST_TITLE
inside
$ sid da1 da2 da3 da4 solver
1 0.0 0.0 0.0 0.0MECH
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
22 1 64 85 43 106 127 148
169 0 0 0 0 0 0 0
*SET_NODE_LIST_TITLE
outside
$ sid da1 da2 da3 da4 solver
2 0.0 0.0 0.0 0.0MECH
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
394 230 271 353 312 435 517 476
558 0 0 0 0 0 0 0
$
$==================== THERMAL BOUNDARY and INITIAL CONDITIONS ==================
$
*INITIAL_TEMPERATURE_SET
$ nid/sid temp loc
0 20.0
*BOUNDARY_TEMPERATURE_SET
$ nid/sid tlcid tmult loc tdeath tbirth
1 0 20.0
2 1 1.0
*DEFINE_CURVE
$ lcid sidr sfa sfo offa offo dattyp
1 0 1 1 0 0 0
$ a1 o1
0.0 20.0
600.0 10.0
1.0e6 10.0
$
*END
