Coilgun
This example shows a coilgun simulation, also known as a Gauss rifle. It is a type of projectile accelerator consisting of one or more coils used as electromagnets in the configuration of a linear motor that accelerate a ferromagnetic or conducting projectile to high velocity. The EM solver is coupled to the Solid mechanics LS-DYNA solver.

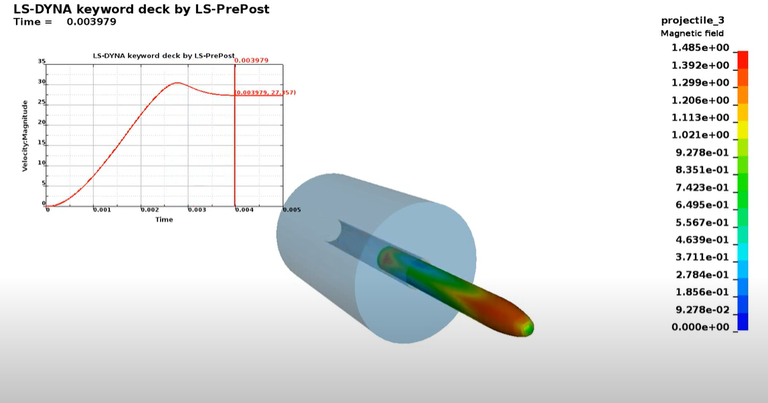

This example shows a Full 3-dimensional Eddy current Coilgun simulation. The Simulation is based on a symmetric monolithic FEM-BEM coupling (instead the classic Richardson a.ka weak FEM-BEM coupling used for metal forming applications). No airbox is needed. The computational model consists of the solid parts only. The projectile is made out of VACOFLUX 48. A Newton-Raphson method with linesearch is used to tackle the nonlinearity
*CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DEFINE_CURVE_TITLE *EM_CIRCUIT *EM_CONTROL
*EM_CONTROL_COUPLING *EM_CONTROL_TIMESTEP *EM_MAT_001
*EM_MAT_002
*EM_OUTPUT
*EM_SOLVER_BEM
*EM_SOLVER_BEMMAT
*EM_SOLVER_FEM
*EM_SOLVER_FEMBEM_MONOLITHIC *END *KEYWORD *MAT_RIGID *PARAMETER *PART *SECTION_SOLID *TITLE
$----------------------------------------------------------------------------- $ $ Example provided by Iñaki (LSTC) $ $ $ $X------------------------------------------------------------------------------ $X $X 1. Run file as is. $X Requires LS-DYNA MPP Dev dated Aug 2020 (or more recent) with double precision $X $X------------------------------------------------------------------------------ $# UNITS: (kg/m/s) $X------------------------------------------------------------------------------ $X $ ******************************************************************************
$
$ E L E C T R O M A G N E T I C M A T E R I A L
$
$ ******************************************************************************
*EM_CONTROL
$--------1---------2---------3---------4---------5---------6---------7---------8
$# emsol numls dt
1 &dt_em
*EM_CONTROL_COUPLING
2
*EM_CONTROL_TIMESTEP
$--------1---------2---------3---------4---------5---------6---------7---------8
$# tstype dtcons lcid factor
1 &dt_em 0 1.0
*EM_SOLVER_FEM
$--------1---------2---------3---------4---------5---------6---------7---------8
$# reltol maxite stype precon uselast ncyclfem
1e-8 10000 1 1 1
*EM_SOLVER_BEM
$--------1---------2---------3---------4---------5---------6---------7---------8
$# reltol maxite stype precon uselas ncyclbem
1.e-8 10000 2 2 1
*DEFINE_CURVE
111
0,100
5.e-4,100
1.e-3,50
2.e-3,10
2.5e-3,5
3.e-3,2
5.e-3,2
*EM_SOLVER_FEMBEM
$--------1---------2---------3---------4---------5---------6---------7---------8
$ relTol maxIter forceCon alphaImpl solveType
1.e-4 50
*EM_SOLVER_FEMBEM_MONOLITHIC
0,,1.e-8,1.e-8,10000
*EM_OUTPUT
$--------1---------2---------3---------4---------5---------6---------7---------8
$# mats matf sols solf mesh mem timing
2 2 2 2 0 0 0 0
*EM_SOLVER_BEMMAT
$--------1---------2---------3---------4---------5---------6---------7---------8
1 1.e-8
*EM_SOLVER_BEMMAT
2 1.e-8
*EM_SOLVER_BEMMAT
3 1.e-8
*EM_EOS_PERMEABILITY
$--------1---------2---------3---------4---------5---------6---------7---------8
$# eosid eostype lcid
102 1 402
*EM_MAT_001
$--------1---------2---------3---------4---------5---------6---------7---------8
$# mid mtype sigma eosid
&mid_coil 1
*EM_MAT_002
$--------1---------2---------3---------4---------5---------6---------7---------8
$# mid mtype sigma eosid murel eosmu
&mid_proj 2 &sigma 0 &murel 102
*EM_CIRCUIT_SOURCE
$--------1---------2---------3---------4---------5---------6---------7---------8
$# circid circtyp lcid r/f l/a c/t0 v0
1 1 101
$# sidcurr sidvin sidvout partid
3 2
*END
